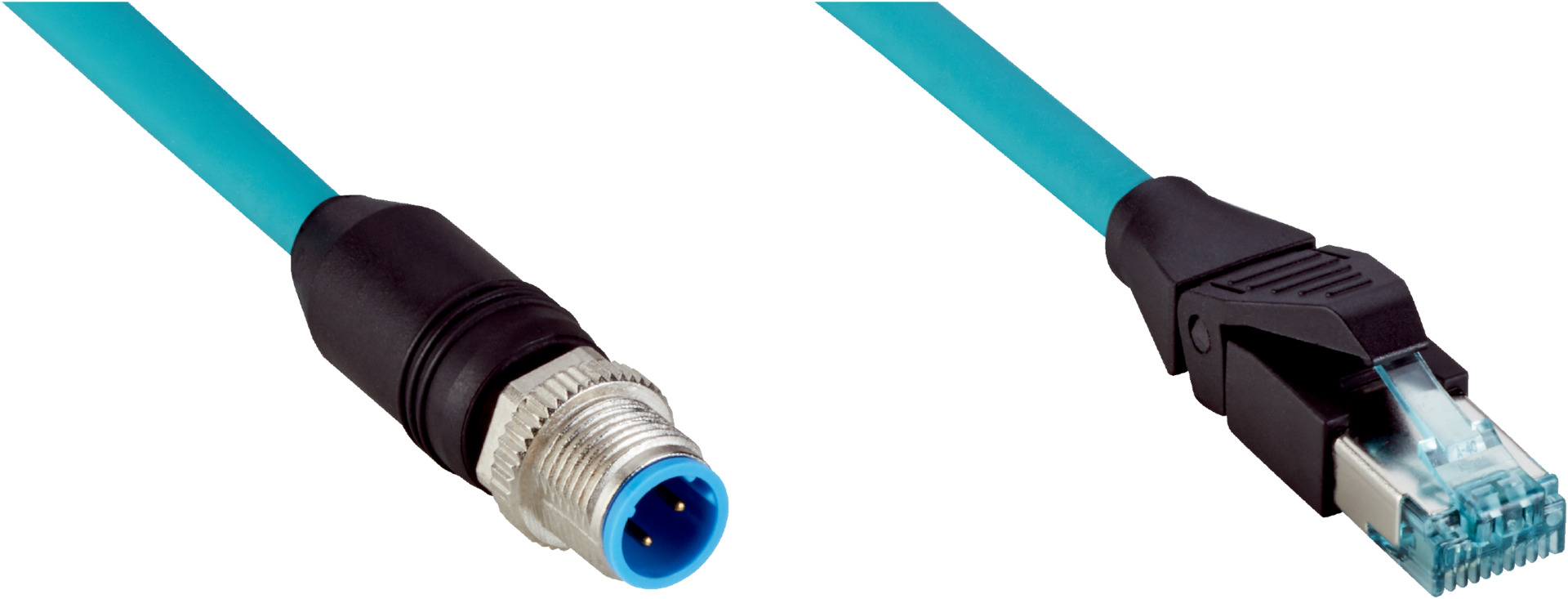

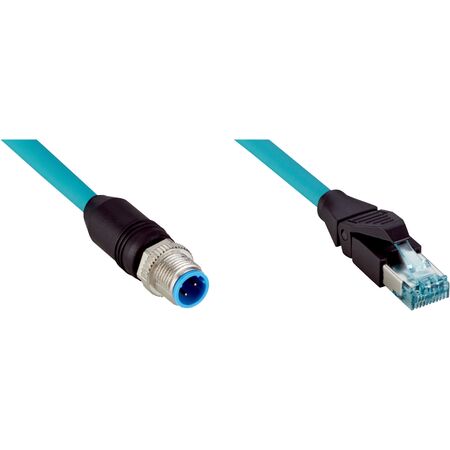

Ethernet Cable Assembly M12 to RJ45 | IP67 Rated | 6m Length | Shielded | by SICK
The Ethernet cable assembly M12 to RJ45 is designed for industrial automation and robotics, featuring a robust IP67-rated M12 connector and a 6m shielded cable. Built for high flexibility and torsion resistance, this cable ensures reliable Ethernet connectivity in challenging environments, making it ideal for robot drag chain operations and areas exposed to oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 6 m
- Cable type: 4-wire, TPE jacket
- Cable diameter: 6.6 mm
- Conductor cross section: 0.227 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1500 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Dimensions (H x L x W): 10mm x 6000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 4-pin, straight on head B
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 6 m long, 4-wire TPE cable with turquoise jacket
- Shielded cable with 0.227 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Nominal voltage 600 V AC, test voltage 1500 V AC
- Supports Ethernet and EtherNet/IP™ with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- IP67 rated enclosure for M12 connector, IP20 for RJ45
- Operating temperature range -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- High torsion resistance with 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and robotics
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and shielding reduce cable replacement frequency, minimizing waste
- Supports efficient data transmission reducing energy consumption in industrial networks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-060EF4MRJA4 Ethernet cable assembly is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable Ethernet connectivity.
