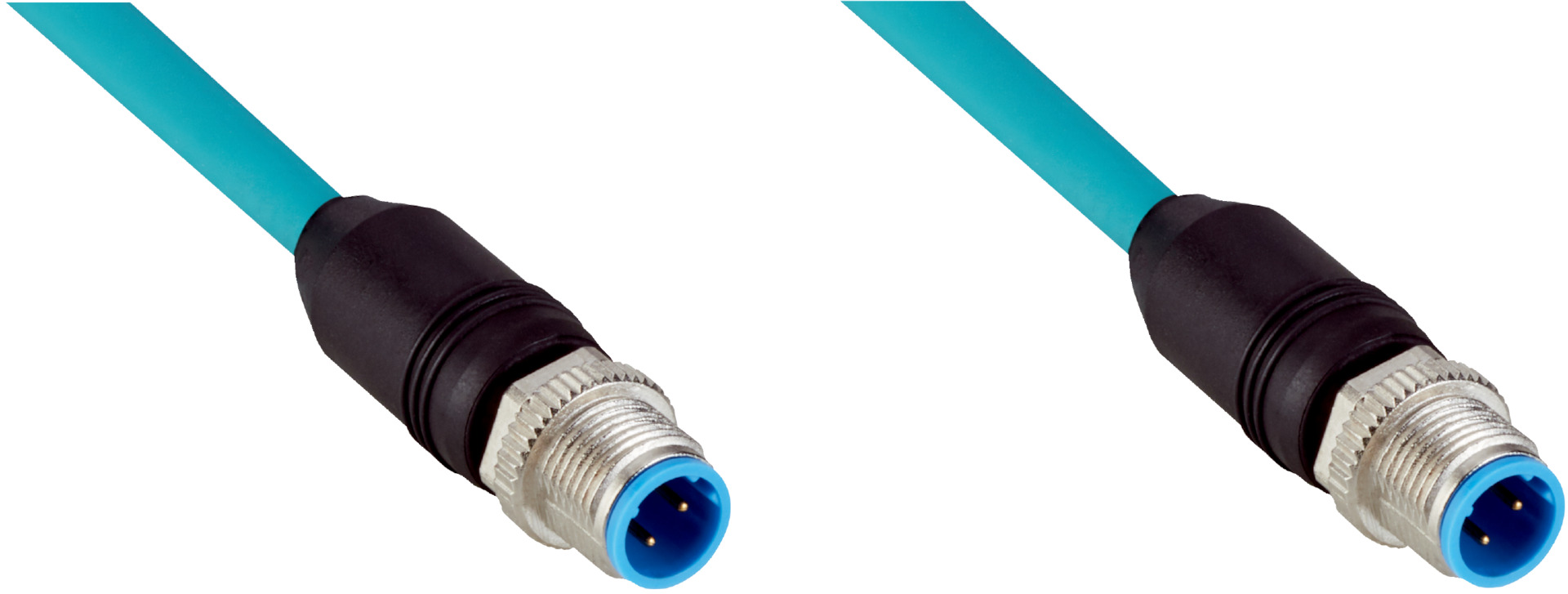

Ethernet Cable M12 4-Pin | 20m Length | Shielded CAT5e | IP65/IP66K/IP67 | by SICK
The Ethernet Cable M12 4-Pin is designed for robust industrial applications, featuring a 20m length and shielded CAT5e transmission characteristics. Ideal for drag chain operations and environments with oils and lubricants, this cable ensures reliable connectivity with a high bending radius and IP65/IP66K/IP67 protection, making it perfect for automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 20 m
- Cable type: 4-wire, TPE jacket, turquoise color
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 13mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Screw connection locking plug
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 20 m length, 4-wire TPE cable with turquoise jacket
- Shielded cable with CAT5e transmission characteristics
- High bending radius for flexible use and drag chain operation
- Rated for 600 V AC nominal voltage and 1,500 V AC test voltage
- Supports Ethernet, EtherNet/IP™ signal type with data rate up to 0.1 Gbit/s
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- High torsion resistance with 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and high torsion resistance reduce replacement frequency and waste.
- Shielded cable minimizes electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-200EF4M2D24 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring robust and reliable Ethernet connections.
