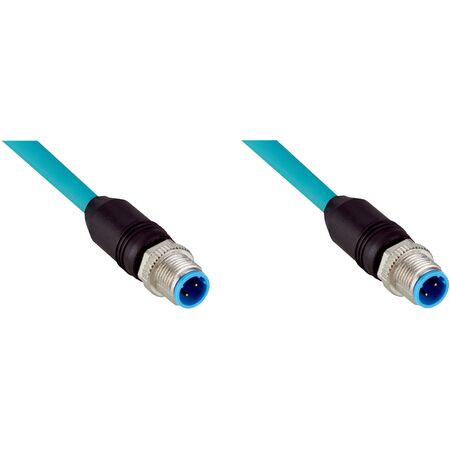

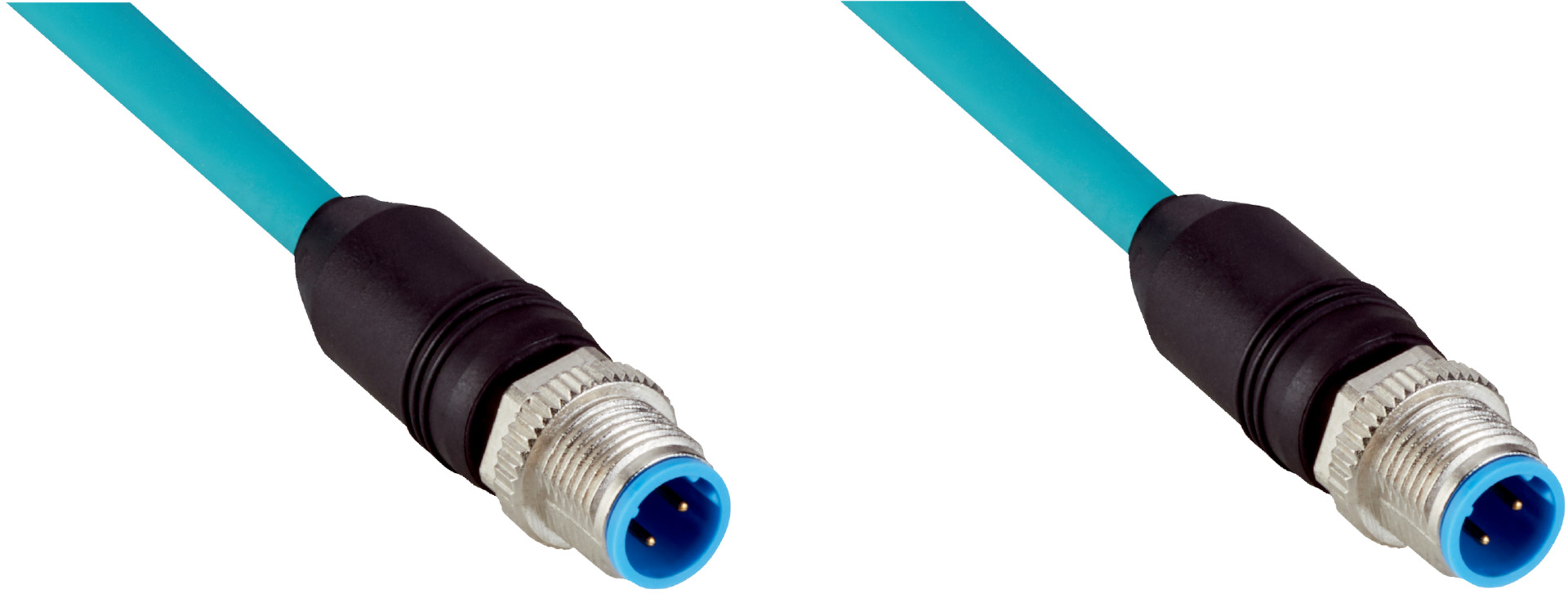

Ethernet Drag Chain Cable | M12 4-Pin Connectors | Shielded CAT5e | IP65/IP66K/IP67 Rated | by SICK
The Ethernet Drag Chain Cable is designed for robust industrial applications, featuring male M12 4-pin connectors on both ends and a shielded CAT5e construction for reliable Ethernet and EtherNet/IP™ transmission. With an impressive operating temperature range of -25°C to +85°C and an IP65/IP66K/IP67 rated enclosure, this cable is perfect for drag chain operations and environments with oils and lubricants, ensuring durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, TPE jacket, turquoise color
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Stationary position temperature range: -40°C to +80°C
- Drag chain operation bending radius: > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature head: -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 6mm x 100000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12 4-pin straight D-coded connectors on both ends
- Screw connection locking plug
- Shielded CAT5e cable for Ethernet, EtherNet/IP™ transmission
- High bending radius and torsion cycles for durability
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Operating temperature range: -25°C to +85°C at the head
- Nominal voltage 600 V AC with 4 A current loading
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Shielded cable minimizes electromagnetic interference, improving energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK YM2D24-100EF4M2D24 Ethernet Drag Chain Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable Ethernet connectivity in harsh environments.
