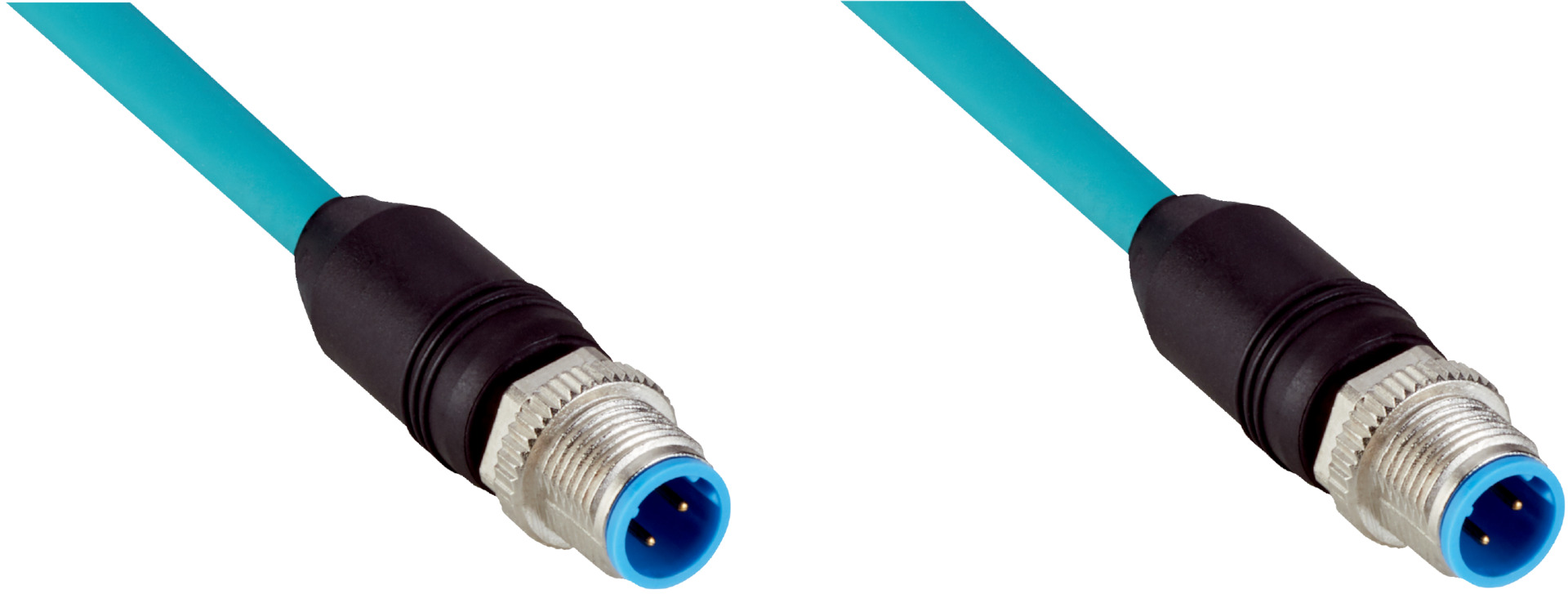

Ethernet M12 Cable | Male 4-Pin D-Coded Connectors | Shielded CAT5e | IP65/IP66K/IP67 Rated | by SICK
The Ethernet M12 Cable YM2D24-010EF4M2D24 features male 4-pin D-coded connectors on both ends, ensuring reliable Ethernet and EtherNet/IP™ transmission. Designed for drag chain operation and environments with oils and lubricants, this cable is built with durable TPU and zinc die-cast materials, offering high bending radius and torsion cycles. With an IP65/IP66K/IP67 rating, it withstands harsh conditions, making it ideal for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 1 m
- Cable type: 4-wire, TPE jacket, turquoise color
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage cable: 600 V AC
- Test voltage cable: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 6.6mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12 4-pin straight D-coded connectors on both ends
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- Shielded CAT5e cable for Ethernet, EtherNet/IP™ transmission
- High bending radius and torsion cycles for durability
- IP65 / IP66K / IP67 rated enclosure for protection
- Operating temperature range: -40°C to +85°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Shielded cable minimizes electromagnetic interference, improving energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK YM2D24-010EF4M2D24 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable Ethernet connectivity.
