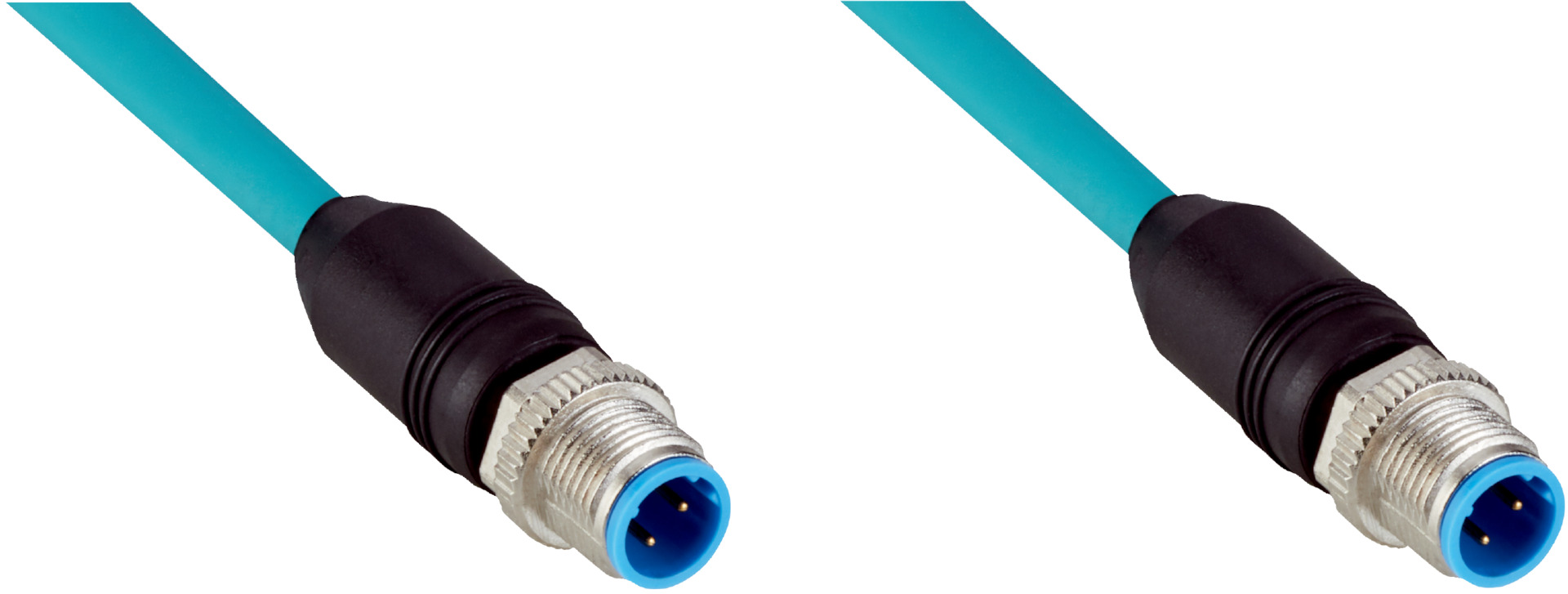

Ethernet M12 Cable | Shielded CAT5e | IP65/IP66K/IP67 Rated | by SICK
The Ethernet M12 Cable is designed for robust industrial applications, featuring shielded CAT5e connectivity with male M12, 4-pin connectors on both ends. Ideal for drag chain operation and environments with oils and lubricants, this cable ensures reliable data transmission and high torsion resistance, making it perfect for automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 2 m
- Cable type: 4-wire, TPE jacket, turquoise color
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° per meter
- Torsion cycles: 3,000,000
- Operating temperature stationary: -40°C to +80°C
- Operating temperature head: -25°C to +85°C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Dimensions (H x L x W): 6.6mm x 2000mm x 13mm
- Weight: 0.15 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Screw connection locking plug
- Shielded CAT5e cable for Ethernet, EtherNet/IP™
- High bending radius for flexible use and drag chain operation
- Operating temperature range: -40°C to +85°C
- IP65 / IP66K / IP67 rated enclosure for robust protection
- High torsion resistance with 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and electronic waste
- Shielded cable minimizes electromagnetic interference, improving energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YM2D24-020EF4M2D24 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring robust and reliable Ethernet connections.
