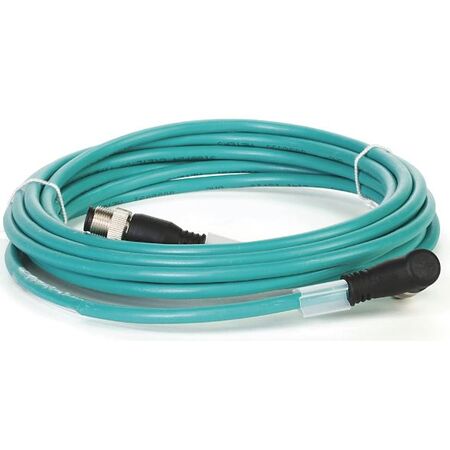

Ethernet Media Cable 1585DM4UBDE5 | Micro D-code Quick Disconnect | 5 Meters | Teal LSZH Jacket | by Allen-Bradley
The Ethernet Media Cable 1585DM4UBDE5 features a Micro D-code quick disconnect style, perfect for industrial Ethernet networking and factory automation systems. With a 5-meter length and a flexible teal LSZH PUR jacket, this cable supports 100BASE-TX Ethernet at 100 Mbit/s, ensuring reliable data communication even in harsh environments. Ideal for professional installations, it offers enhanced noise protection with its foil and braided shielding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: Ethernet Media
- Connector Style: Micro D-code quick disconnect (QD)
- Connector Orientation: Straight male and right angle male
- Conductors: 4 conductors (2-pair), 26 AWG
- Jacket Material: LSZH PUR (Low Smoke Zero Halogen Polyurethane)
- Shielding: Foil and braided shield
- Data Rate: 100BASE-TX, 100 Mbit/s
- Length: 5 meters
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Micro D-code quick disconnect style
- Straight male connector with 4 conductors (2-pair)
- Teal 26AWG flexible LSZH PUR jacket
- Foil and braided shield for enhanced noise protection
- Supports 100BASE-TX Ethernet at 100 Mbit/s
- Right angle male micro style QD connector
- 5 meters cable length
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper connection and shielding integrity.
Applications
- Industrial Ethernet networking
- Factory automation systems
- Data communication in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low smoke zero halogen (LSZH) jacket reduces toxic emissions in case of fire
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1585DM4UBDE5 Ethernet Media Cable is available now for immediate purchase. Ideal for industrial Ethernet networking and factory automation applications.
