Ethernet PoE Adaptor to Suit ELK-7TS Touch Screen Ness

BRAND: Ness
SKU: 101-504-POE
$185.60 List price: $247.50
+ −
30 Days Return Electricians Unlock Trade Access

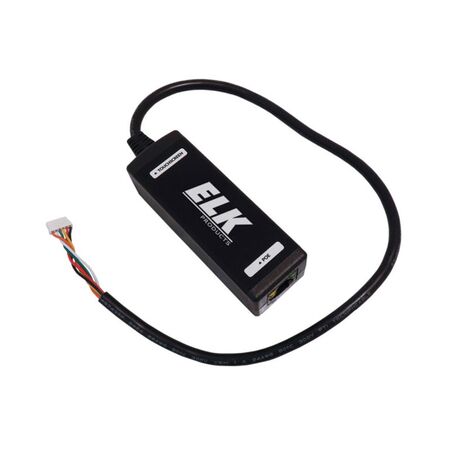

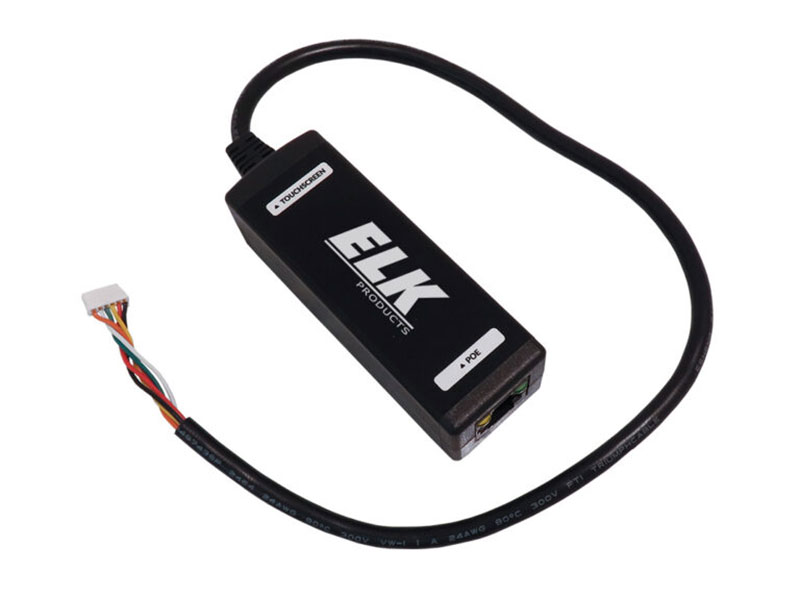

Ness Ethernet PoE adaptor to Suit the ELK-7TS touch screen. Ideal for powering M1 alarm system touch screens over Ethernet.

Alternatively Known As: ELK-POE47TS, ELK-7TS Ethernet and PoE Adapter, 101-504-POE

Technical Specifications
  • Compatibility: ELK-7TS touchscreen for Ness M1 and ELK alarm systems
  • Network Interface: RJ45 Ethernet, 10/100 Mbps
  • PoE Input: 24–57 VDC
  • PoE Requirement: Minimum 18 W per PoE port
  • Power Output: 12 VDC, 1.5 A
  • Connection: Pre-wired touchscreen connector with 381 mm cable
  • Indicators: Power and network status LEDs
  • Dimensions (H x L x W): 28.6mm x 81mm x 25.4mm
  • Weight: 0.12 kg
Key Features
  • Provides Ethernet connectivity when Wi-Fi is unavailable or not preferred
  • Delivers network connectivity and power to the ELK-7TS through a compatible PoE switch or injector
  • RJ45 network port and pre-wired touchscreen connector
  • Power and network LED indicators
  • Suitable for Ness M1 alarm system touch-screen installations
Professional Installation Requirements
  • Connect to a compatible PoE-enabled Ethernet switch or injector and the ELK-7TS touchscreen in accordance with the manufacturer’s instructions. Licensed electrical installation is not normally required for the low-voltage connection, but any mains-connected PoE equipment must be installed and used in accordance with local requirements.
Applications
  • Powering ELK-7TS touchscreens over Ethernet
  • Connecting ELK-7TS touchscreens to Ness M1 alarm systems via a wired LAN
  • Replacing Wi-Fi connectivity with a hardwired Ethernet connection
  • Security and automation system touchscreen installations
Environmental Benefits
  • Combines Ethernet connectivity and touchscreen power through one network connection, which can reduce the need for separate low-voltage cabling and power infrastructure
  • Low-voltage operation supports efficient power delivery to the touchscreen compared with separate, duplicated connection arrangements
Warranty Information

Ness manufactured or supplied products are covered by Ness Corporation’s general 3-year warranty from the date of purchase, subject to the manufacturer’s warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security and alarm-system distributors; confirm current stock with the supplier.
