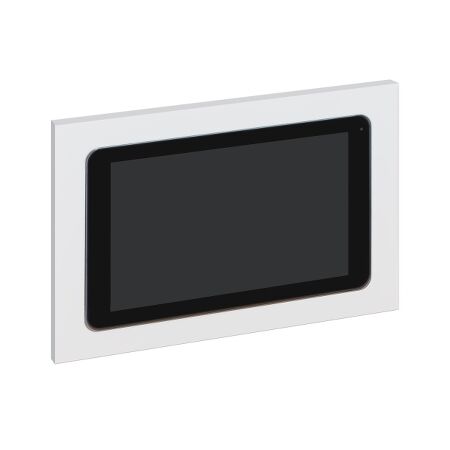

Ethernet Touch Panel 10.1 Inch | PoE & USB | Wall Mount by Clipsal
Ethernet touch panel with 10.1 inch display and PoE support—ideal for smart home and commercial control. Built for seamless integration, with USB connectivity and wall mounting design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C-Bus Control and Management System, Ethernet Touch Panel, Price On Application
Brand: Clipsal
SKU: 5000ETP10W
Alternatively Known As: C-Bus Touch Panel, Ethernet Control Panel, Smart Home Touch Screen
Technical Specifications
- Power Supply: 12 V DC, +/- 5 %, <1.5 A via PoE: - 15 W
- Communication Protocol: Ethernet
- Display Resolution: 1280 x 800 pixels
- Luminance: 300 cd/m²
- Contrast Ratio: 800:1
- Aspect Ratio: 16:9
- Response Time: 30 ms typical
- Operating Temperature: 0...40 °C
- Relative Humidity: 10...85 %
- Dimensions (H x L x W): 220mm x n/a mm x 316mm
- Weight: 1.55 kg
Key Features
- 10.1 inch display with 262,000 colors
- Ethernet and USB connectivity
- Supports PoE with a maximum power consumption of 6W
- Wall mounting design
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Smart Home: Control and monitor home automation systems
- Commercial: Equipment monitoring and control in office environments
Standards & Compliance
- Complies with IEEE 802.3af standards.
Environmental Benefits
- Compliant with RoHS directives and mercury-free design.
Warranty Information
Warranty information not specified.
Available Now
The Clipsal C-Bus Control and Management System Ethernet Touch Panel is available now for immediate purchase. Ideal for smart home and commercial applications.
