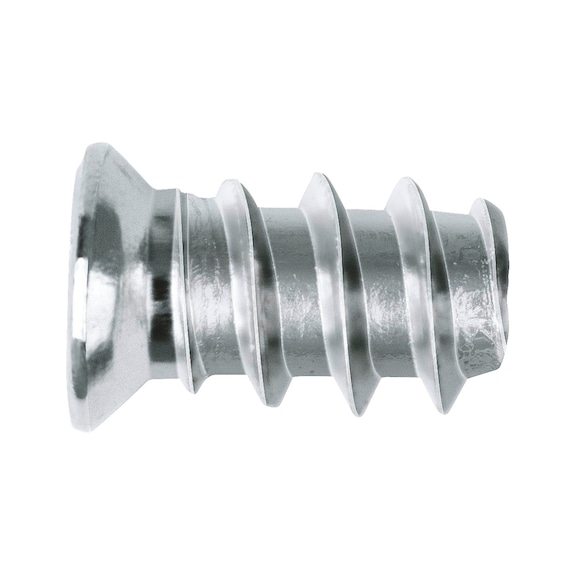

Euro Screw Countersunk Head Type A | Nickel-Plated Steel | 6.3mm Diameter | @Pack of 100 | by Wurth
Euro screws with a countersunk head type A are perfect for furniture construction and fittings. Made from durable nickel-plated steel, these screws ensure a strong connection for concealed hinges and extensions. Ideal for professional tradespeople, they offer reliable performance in wood and derived timber products.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Euro Screw Countersunk Head Type A | Nickel-Plated Steel | 6.3mm Diameter | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 27606318
Alternatively Known As: Euro screw, countersunk screw, furniture screw, nickel-plated wood screw
Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 18 mm
- Head type: Countersunk head Type A
- Head diameter: 7.4 mm
- Head height: 1.8 mm
- Internal drive: Z2
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 4.0 mm
- Shape of tip: Flat
- Min. screw-in angle: 45 degrees
- Max. screw-in angle: 90 degrees
- Material: Hardened steel
- Surface: Nickel plated
- Suitable materials: Wood, derived timber product, softwood
- Dimensions (H x L x W): 18mm x 18mm x 7.4mm
- Weight: 0.05 kg
Key Features
- Nickel-plated steel
- Designed for connection of concealed hinges, conventional hinges, extensions, and fittings in furniture construction
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fitting and structural integrity.
Applications
- Fitting
- Store construction
- Exhibition stand construction
- Furniture construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable nickel plating extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Euro Screw Countersunk Head Type A 100 PCS is available for immediate purchase, ideal for furniture and exhibition stand construction.
