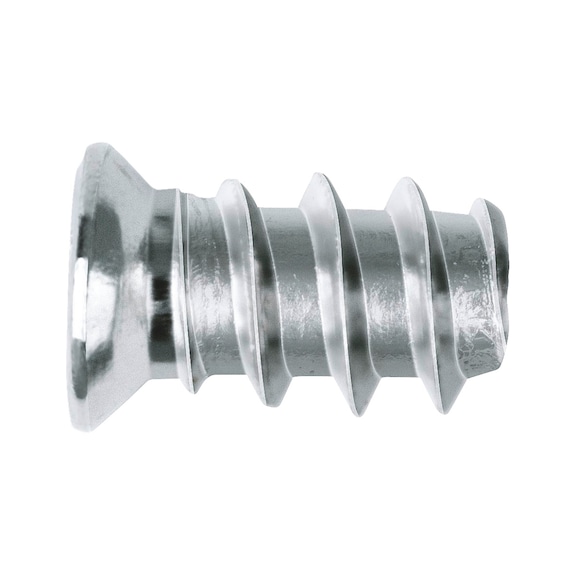

Euro Screw Countersunk Head Type A | Nickel-Plated Steel | AW20 Drive | @Each by Wurth
The Euro Screw Countersunk Head Type A is designed for seamless furniture construction, featuring a durable nickel-plated steel finish and an AW20 internal drive. Ideal for fitting concealed hinges and extensions, this screw ensures a secure connection in wood and derived timber products, making it perfect for both professional tradespeople and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Euro Screw Countersunk Head Type A | Nickel-Plated Steel | AW20 Drive | @Each by Wurth
Brand: Wurth
SKU: 27666311
Alternatively Known As: Euro screw, countersunk screw, furniture screw, nickel-plated wood screw

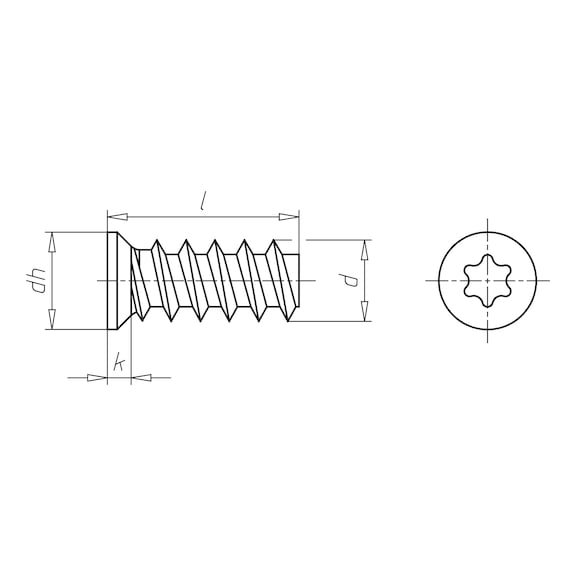

Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 11 mm
- Head type: Countersunk head, Type A
- Head diameter: 6.8 mm
- Head height: 1.8 mm
- Internal drive: AW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 4.0 mm
- Shape of tip: Flat
- Min. screw-in angle: 45 degrees
- Max. screw-in angle: 90 degrees
- Material: Hardened steel
- Surface: Nickel plated
- Suitable materials: Wood, Derived timber product, Softwood
- Dimensions (H x L x W): 1.8mm x 11mm x 6.8mm
- Weight: 0.01 kg
Key Features
- Nickel-plated steel
- Designed for connection of concealed hinges, conventional hinges, extensions, and fittings in furniture construction
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and safety.
Applications
- Fitting
- Store construction
- Exhibition stand construction
- Furniture construction
Standards & Compliance
- AS/NZS 4785 – Wood screws and nails for timber construction
Environmental Benefits
- Durable nickel plating extends product life, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Euro Screw Countersunk Head Type A is available for immediate purchase, ideal for furniture and exhibition stand construction.
