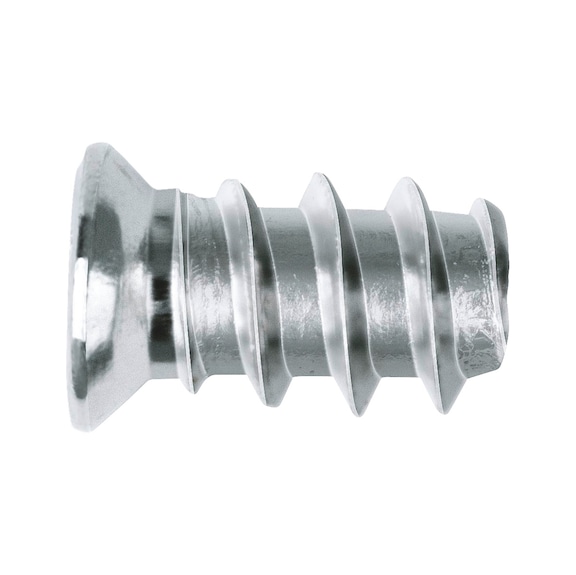

Euro Screw Countersunk Head Type A | Nickel-Plated Steel | Designed for Furniture Construction | by Wurth
The Euro Screw Countersunk Head Type A is crafted from durable nickel-plated steel, making it perfect for furniture construction and fittings. With a nominal diameter of 6.3 mm and a length of 14 mm, this screw is designed for secure connections in concealed hinges and extensions. Ideal for professional installation, it ensures structural integrity in various applications, including store and exhibition stand construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Euro Screw Countersunk Head Type A | Nickel-Plated Steel | Designed for Furniture Construction | by Wurth
Brand: Wurth
SKU: 27606314
Alternatively Known As: Euro screw, countersunk screw, furniture screw, nickel-plated wood screw
Technical Specifications
- Nominal diameter: 6.3 mm
- Length: 14 mm
- Head type: Countersunk head, Type A
- Head diameter: 7.4 mm
- Head height: 1.8 mm
- Internal drive: Z2
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 4.0 mm
- Shape of tip: Flat
- Min. screw-in angle: 45 degrees
- Max. screw-in angle: 90 degrees
- Material: Hardened steel
- Surface: Nickel plated
- Suitable materials: Wood, derived timber product, softwood
- Dimensions (H x L x W): 1.8mm x 14mm x 7.4mm
- Weight: 0.01 kg
Key Features
- Nickel-plated steel
- Designed for connection of concealed hinges, conventional hinges, extensions, and fittings in furniture construction
Professional Installation Requirements
- Installation by a professional or experienced individual recommended to ensure proper fitting and structural integrity.
Applications
- Fitting
- Store construction
- Exhibition stand construction
- Furniture construction
Standards & Compliance
- AS/NZS 4785 – Wood screws
Environmental Benefits
- Durable nickel plating extends product life, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Euro Screw Countersunk Head Type A is available for immediate purchase, ideal for furniture and exhibition stand construction.
