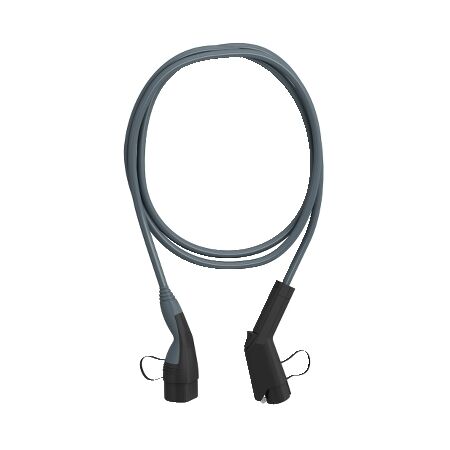

EV Charging Cable 10m 32A T2 T1 Connector IP44 Rated Clipsal

BRAND: Clipsal
SKU: SCHEVP1CNX32121
$877.80 List price: $1,093.80
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal EV Charging Cable Connector Rated features 32A rated current, T2 and 220-240V AC 50 60Hz. 10m length for flexible installation.
Technical Specifications
  • Rated current: 32A
  • Connector type: T2 (charging station end), T1 (vehicle end)
  • Rated supply voltage: 220-240V AC 50/60Hz
  • IP Rating: IP44
  • IK Rating: IK10
  • Ambient temperature for operation: -30 to 50 °C
  • Length: 10m
  • Dimensions (H x L x W): 160mm x 10000mm x 350mm
  • Weight: 4.1 kg
Key Features
  • 10m length for flexible installation.
  • 32A rated current for efficient charging.
  • T2-T1 connector compatibility for various EV models.
  • IP44 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Electric vehicle charging at home or commercial charging stations.
Standards & Compliance
  • Complies with IEC 62196-1 and IEC 62196-2 standards.
Environmental Benefits
  • Compliant with RoHS directives for reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal EVlink Pro AC Charging Cable is available now for immediate purchase. Ideal for electric vehicle charging solutions.

FAQ

Q: What connector configuration does this EV charging cable use?
A: It features a T2 connector on the charging station end and a T1 connector on the vehicle end for compatible EV charging applications.

Q: Is this charging cable suitable for outdoor use?
A: Yes. It has an IP44 rating for protection against dust and water, along with an IK10 impact rating for added durability.


Pair this charging cable with an EV charger pedestal to create a convenient charging point for compatible installations.
Add an EV charger wall mount kit when installing compatible charging equipment on solid wall surfaces.
An EV charger enclosure helps protect compatible charging equipment in indoor and outdoor charging environments.

The Type 2 EV charging cable guide explains connector compatibility and cable selection for Australian EV charging installations.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.


EVP1CNX32121 (EVP1CNX32121, 218 Kb) [Download]
