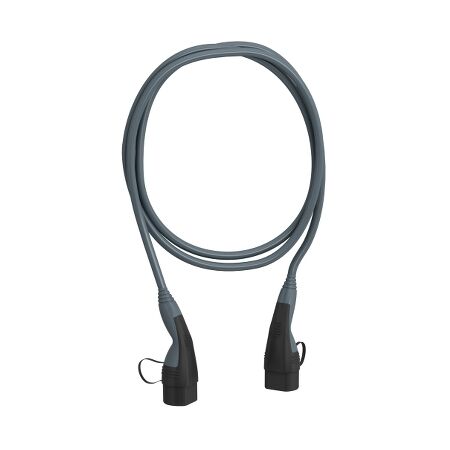

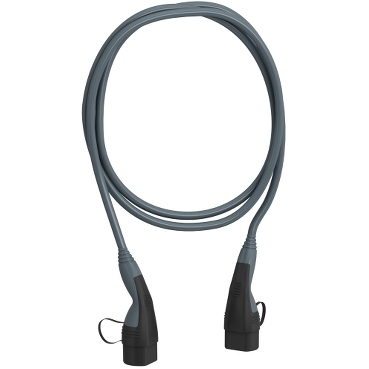

EV Charging Cable 5m | 32A T2 Connectors | IP44 Rated | Clipsal

BRAND: Clipsal
SKU: SCHEVP1CNS32122
$751.20 List price: $936.10
Free pick up (over 1 meter)
For delivery quote message
EV charging cable with 5m length and 32A T2 connectors—ideal for home or commercial charging stations. Built for efficient charging, with IP44 protection against water and dust.

Product Name/Title: EVlink Pro AC, Charging cable, 5m, 32A, 1-Phase, T2 connector at each end of cable

Brand: Clipsal

SKU: EVP1CNS32122

Alternatively Known As: EV Charging Cable, Electric Vehicle Charger, T2 Charging Cable

Technical Specifications
  • Rated current: 32A
  • Length: 5m
  • Connector type: T2 with silver plated contacts
  • Rated supply voltage: 220-240V AC 50/60Hz
  • IP Rating: IP44
  • IK Rating: IK10
  • Operating temperature: -30 to 50 °C
  • Storage temperature: -40 to 80 °C
  • Relative humidity: 5 to 95%
  • Dimensions (H x L x W): 100mm x 5000mm x 330mm
  • Weight: 2.5 kg
Key Features
  • 5m length with T2 connectors at both ends.
  • Rated current of 32A for efficient charging.
  • IP44 rated for protection against water and dust.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Electric vehicle charging at home or commercial charging stations.
Standards & Compliance
  • Complies with relevant IEC standards.
Environmental Benefits
  • Complies with IEC 62196-2 and IEC 62196-1 standards for safety and performance.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal EVlink Pro AC Charging Cable is available now for immediate purchase. Ideal for electric vehicle charging applications.

EVP1CNS32122 (EVP1CNS32122, 219 Kb) [Download]
