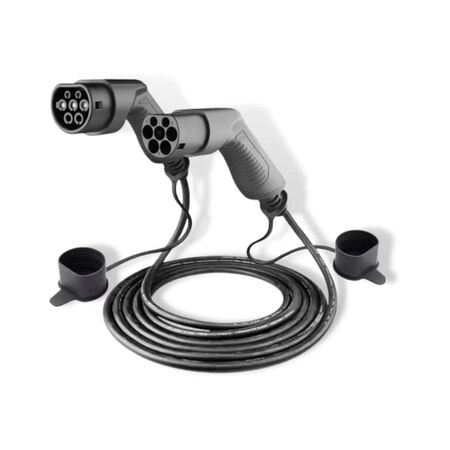

EV Charging Cable Type 2 To 2 5m 22kW 32A Three Phase Solar Juice
Type 2 to Type 2 EV charging cable with a 5 metre length delivers up to 22kW charging at 32A three phase for compatible European and Australian electric vehicles. Rated at 400V AC with IP54 protection when connected, it is suitable for residential, commercial, and fleet charging applications. Complies with AS/NZS 3000 Wiring Rules and AS/NZS 3820 Essential Safety Requirements for Electrical Equipment. Continue below for full technical specifications, dimensions, and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector Type: Type 2 (IEC 62196-2) to Type 2
- Cable Length: 5 metres
- Maximum Power: 22kW
- Current Rating: 32A
- Phases: Three phase
- Rated Voltage: 400V AC
- Ingress Protection: IP54 (when connected)
- Operating Temperature: -30°C to +50°C
- Cable Material: Thermoplastic, flame retardant
- Dimensions (H x L x W): 80mm x 5000mm x 80mm
- Weight: 2.5 kg
Key Features
- Type 2 to Type 2 compatibility for European and Australian EVs
- 5 metre cable length for flexible charging access
- Supports up to 22kW charging at 32A three phase
- Durable construction for frequent use
- Suitable for indoor and outdoor environments
Professional Installation Requirements
- Installation and use should be overseen by a qualified electrician to ensure compliance with Australian standards and safe operation.
Applications
- Residential: Home EV charging stations
- Commercial: Public and workplace EV charging points
- Fleet: Electric vehicle fleet charging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables the use of electric vehicles, reducing greenhouse gas emissions and reliance on fossil fuels.
- Supports efficient charging, promoting the adoption of clean transportation.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for fast and reliable charging of electric vehicles in residential, commercial, and fleet environments.
FAQ
Q: Which vehicles is this EV charging cable compatible with?
A: It is designed for European and Australian electric vehicles using Type 2 (IEC 62196-2) connectors.
Q: Can this charging cable be used outdoors?
A: Yes, it has IP54 protection when connected and is suitable for both indoor and outdoor charging applications.
