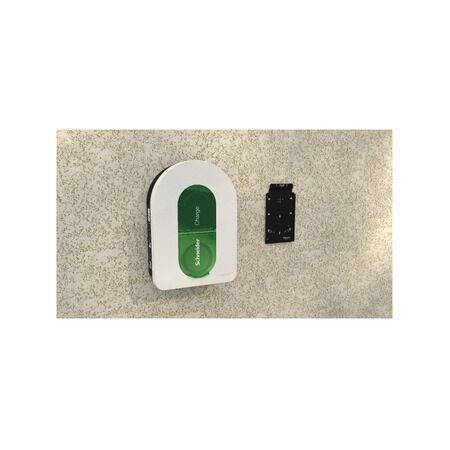

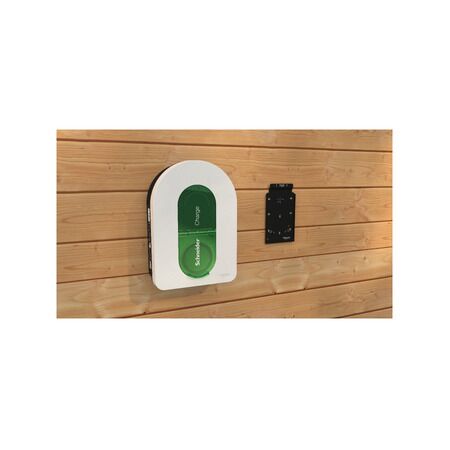

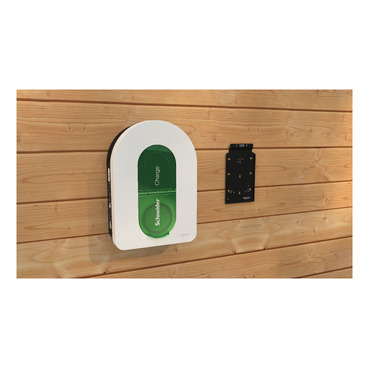

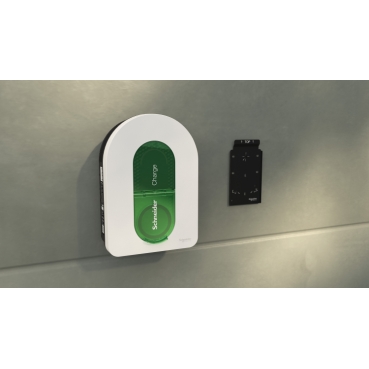

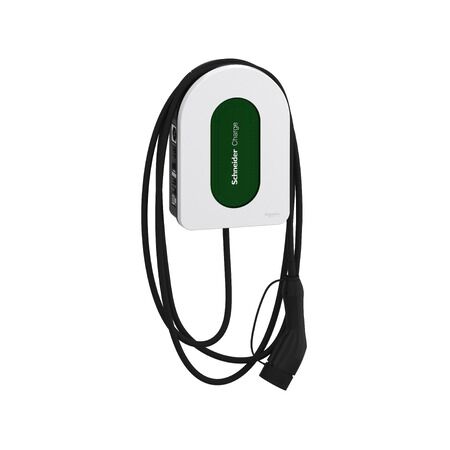

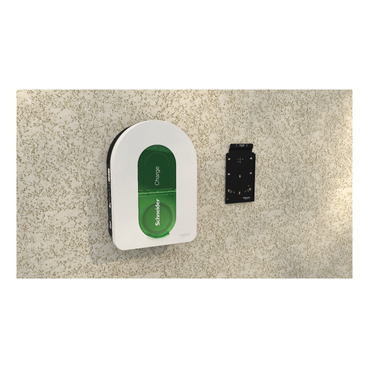

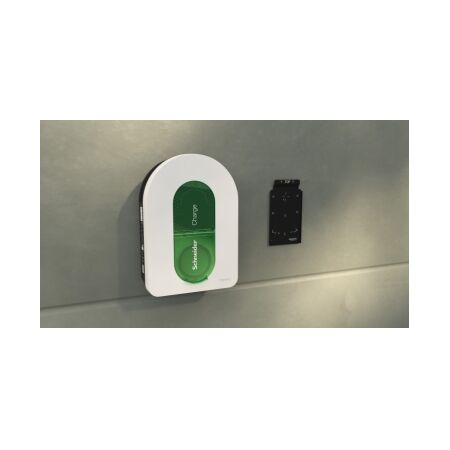

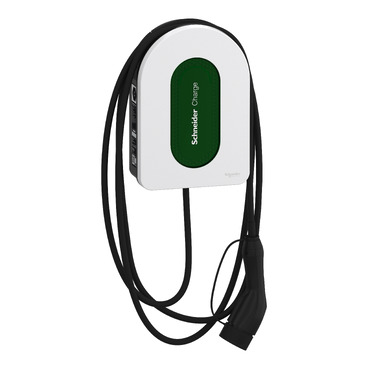

EV Charging Station 11kW | 5m Cable | Wall-Mounted | IP55 by Clipsal

BRAND: Clipsal

SKU: SCHEVH5A11N2C5

$1,585.20 List price: $1,975.40

+ −

30 Days Return Delivery Options

EV charging station with 11kW power and 5m attached cable—ideal for residential and commercial use. Built for easy installation, with wall-mounted design and IP55 rating for durability.

Description
Attachments

Product Name/Title: Schneider Charge, Charging station, 3P+N, attached cable 5m, 11kW, 16A

Brand: Clipsal

SKU: EVH5A11N2C5

Alternatively Known As: EV Charger, Electric Vehicle Charging Station, Schneider EV Charger

Technical Specifications

Nominal output power: 11 kW, 16 A
Socket outlet type: cable T2
Input type: dry contact for dynamic energy management
IP Rating: IP55
IK Rating: IK10
Communication network type: Wi-Fi, wireless, Ethernet
Communication port protocol: OCPP 1.6
Operating temperature: -30 to 55 °C
Storage temperature: -40 to 85 °C
Relative humidity: 5 to 95%
Dimensions (H x L x W): 352mm x 117mm x 244mm
Weight: 4.4 kg

Key Features

Wall-mounted design for easy installation.
Attached 5m cable for convenient charging.
Local signalling with red, green, and blue LED for status indication.
Earth-leakage protection for safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Home charging for electric vehicles
Commercial: Public charging stations, fleet charging

Standards & Compliance

Complies with EN 61851 and IEC 61851-1 standards.

Environmental Benefits

Green Premium product with sustainable packaging.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Schneider Charge 11kW Charging Station with 5m Cable is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging.

EVH5A11N2C5 (EVH5A11N2C5, 204 Kb) [Download]
