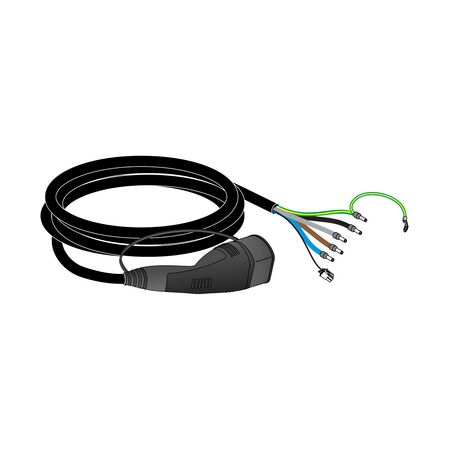

EV Charging Station 32A 4.5m Cable IP54 Rated Clipsal
Deliver reliable EV charging with this 32A EV Charging Station featuring a 4.5m T2 charging cable and 22kW nominal output. Designed for residential and commercial applications, it offers IP54 ingress protection, IK10 impact resistance, and silver plated contacts for dependable performance. Complies with IEC 62196-1 and IEC 62196-2 standards for recognised EV charging applications. Continue below for complete specifications, installation requirements, and operating details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 32A
- Socket number: 1
- Connector type: T2 with silver plated contacts
- Rated supply voltage: 380...415V AC 50/60Hz
- Nominal output power: 22kW
- IP Rating: IP54
- IK Rating: IK10
- Operating temperature: -30...50 °C
- Storage temperature: -40...80 °C
- Relative humidity: 5...95%
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 3.5 kg
Key Features
- 32A rated current for efficient charging.
- 4.5m charging cable for flexible installation.
- IP54 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Home charging for electric vehicles
- Commercial: Charging stations for businesses and public areas
Standards & Compliance
- Complies with IEC 62196-1 and IEC 62196-2 standards.
Environmental Benefits
- Contributes to reduced emissions by facilitating electric vehicle use.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal EVlink Smart Wallbox with Attached Cable T2 32A 3-Ph IEC 4.5m is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.
FAQ
Q: What is the charging capacity of this EV charging station?
A: It provides a rated current of 32A with a nominal output power of 22kW and includes a 4.5m T2 charging cable.
Q: Where is this EV charging station suitable for installation?
A: It is designed for residential home EV charging and commercial charging stations for businesses and public areas.
