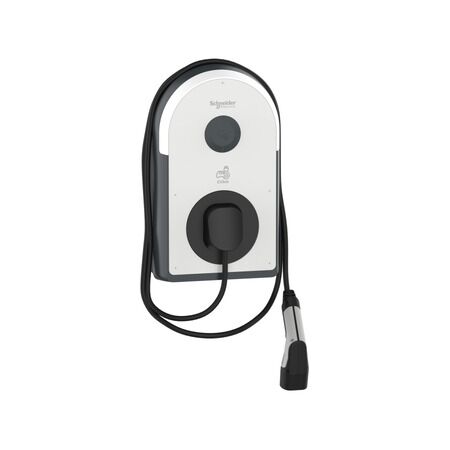

EV Charging Station 7.4kW 32A T2 Cable IP55 Rated Clipsal
Clipsal EV Charging Station Cable Rated features 7.4kW power output, 220-240V AC 50 60Hz and T2 attached cable, 5m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power Output: 7.4kW
- Input Voltage: 220-240V AC 50/60Hz
- Connector Type: T2 attached cable, 5m
- Communication Protocol: OCPP 1.6
- Protection Rating: IP55, IK10
- Operating Temperature: -30 to 45 °C
- Humidity Range: 5 to 95%
- Dimensions (H x L x W): 529mm x 183mm x 317mm
- Weight: 10 kg
Key Features
- 7.4kW charging power with 32A capacity
- Integrated residual direct current detection device (RDC-DD) for safety
- Multiple communication options including Ethernet and Bluetooth
- Remote control capability for convenience
- IP55 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Home charging solutions for electric vehicles
- Commercial: Charging stations for businesses and public areas
- General: Suitable for indoor and outdoor installations
Standards & Compliance
- Complies with EN/IEC 61851-1 and other relevant standards.
Environmental Benefits
- Green Premium product status indicating reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal EVlink Pro AC Charging Station is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.
FAQ
Q: Is this EV charging station suitable for both residential and commercial installations?
A: Yes. The product is intended for residential home charging as well as commercial charging applications and public areas.
Q: What protection and communication features are included?
A: The charging station includes IP55 and IK10 protection, integrated RDC-DD safety, and supports OCPP 1.6 communication.
Complete your installation with an EV charging station enclosure for added equipment protection in outdoor environments.
Add an EV charging cable holder to keep the attached charging cable neatly stored between charging sessions.
Pair the installation with an EV load shedder to help manage electrical demand during vehicle charging.
Understand charging configurations with the EV charger cable Type 2 guide before selecting compatible charging equipment.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
