EV Charging Station with T2 Connector | 32A 1-Ph | IP54 Rated by Clipsal

BRAND: Clipsal
SKU: EVP1CBS321C45
$489.70 List price: $734.60
+
EV charging station with T2 connector and 32A single-phase power—ideal for residential and commercial use. Built for easy electric vehicle charging, with IP54 protection against dust and water.

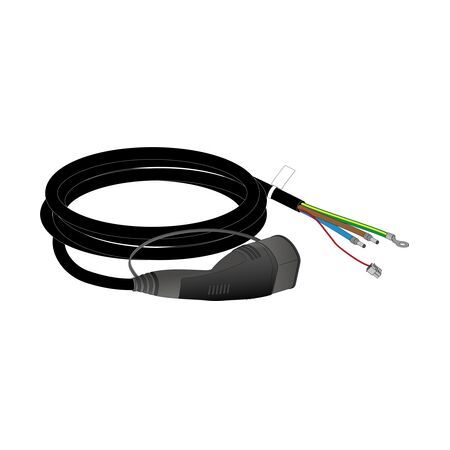

Product Name/Title: EVlink Smart Wallbox, Attached cable, T2 32A 1-Ph IEC 4,5m

Brand: Clipsal

SKU: EVP1CBS321C45

Alternatively Known As: EV Charging Station, Electric Vehicle Charger, Wallbox Charger

Technical Specifications
  • Rated current: 32 A
  • Socket number: 1
  • Connector type: T2 with silver plated contacts
  • Length: 4.5 m
  • IP Rating: IP54
  • IK Rating: IK10
  • Operating temperature: -30 to 50 °C
  • Storage temperature: -40 to 80 °C
  • Relative humidity: 5 to 95 %
  • Rated supply voltage: 220-240 V AC 50/60 Hz
  • Nominal output power: 7.4 kW
  • Dimensions (H x L x W): 150mm x 400mm x 300mm
  • Weight: 2.6 kg
Key Features
  • Attached cable with T2 connector for easy charging.
  • IP54 rated for protection against dust and water.
  • Compatible with single-phase power supply.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Home charging for electric vehicles
  • Commercial: Charging stations for businesses and public areas
Standards & Compliance
  • Complies with IEC 62196-2 and IEC 62196-1 standards.
Environmental Benefits
  • Contributes to reduced emissions by facilitating electric vehicle use.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Clipsal EVlink Smart Wallbox with Attached Cable T2 32A is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.

EVP1CBS321C45 (EVP1CBS321C45, 219 Kb) [Download]
