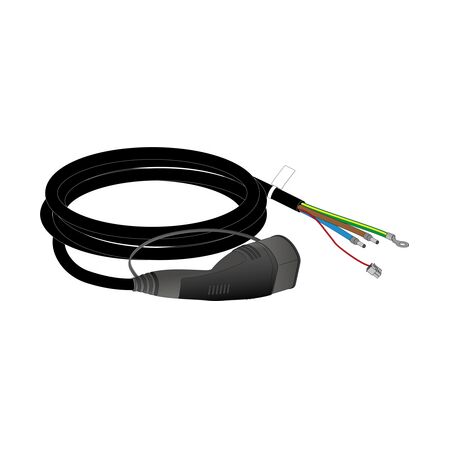

EV Charging Station With T2 Connector 32A 1 Phase IP54 Rated Clipsal
Clipsal EV Charging Station With Connector Ph Rated features 32A rated current, T2 with silver plated contacts and 4.5m length.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 32 A
- Socket number: 1
- Connector type: T2 with silver plated contacts
- Length: 4.5 m
- IP Rating: IP54
- IK Rating: IK10
- Operating temperature: -30 to 50 °C
- Storage temperature: -40 to 80 °C
- Relative humidity: 5 to 95 %
- Rated supply voltage: 220-240 V AC 50/60 Hz
- Nominal output power: 7.4 kW
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 2.6 kg
Key Features
- Attached cable with T2 connector for easy charging.
- IP54 rated for protection against dust and water.
- Compatible with single-phase power supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Home charging for electric vehicles
- Commercial: Charging stations for businesses and public areas
Standards & Compliance
- Complies with IEC 62196-2 and IEC 62196-1 standards.
Environmental Benefits
- Contributes to reduced emissions by facilitating electric vehicle use.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal EVlink Smart Wallbox with Attached Cable T2 32A is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.
FAQ
Q: What type of connector does this EV charging station use?
A: It features a Type 2 connector with silver plated contacts and a 4.5m attached cable for single-phase charging.
Q: Is this charging station suitable for residential and commercial installations?
A: Yes. It is designed for residential home charging as well as commercial charging stations in businesses and public areas.
Install this charger with an EV charging station pedestal floor standing aluminum for a professional freestanding installation.
Protect the installation with an EV charging station enclosure IP66 metal pedestal mount in exposed environments.
Add an EV charging cable holder to keep the charging cable organised when not in use.
Read the EV charger cable Type 2 guide to understand connector compatibility before selecting charging equipment.
