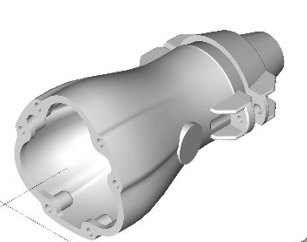

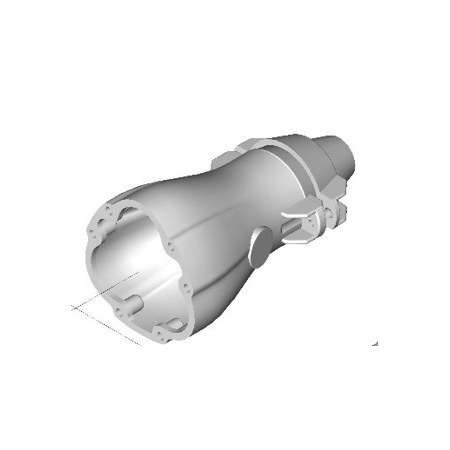

Ex Armoured PILC Gland 38-43mm | Stainless Steel | Flameproof Certification | 11/11kV Voltage | by Ausproof
The Ex Armoured PILC Gland 38-43mm is designed for high voltage PILC SWA cables, supporting 11/11kV applications. Constructed from durable stainless steel, it provides flameproof sealing, making it ideal for hazardous area installations in industrial and mining environments. Ensure safe and reliable electrical terminations with this robust cable gland.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Armoured PILC Gland 38-43mm | Stainless Steel | Flameproof Certification | 11/11kV Voltage | by Ausproof
Brand: Ausproof
SKU: RS946SS
Alternatively Known As: PILC Cable Gland, Armoured Cable Gland, Flameproof Cable Gland, Ex Gland 38-43mm
Technical Specifications
- Cable Outer Diameter Under Armour: 38mm-43mm
- Cable Type: PILC (Paper Insulated Lead Covered)
- Voltage Rating: 11/11kV
- Core Sizes Supported: 25, 35, 50, 70 mm²
- Comp Rubber Size: 38-43 mm
- Material: Stainless Steel
- Flameproof Certification: Suitable for hazardous areas
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 1.2 kg
Key Features
- Designed for PILC SWA cables with outer diameter 38mm to 43mm
- Suitable for 11/11kV voltage applications
- Compatible with core sizes 25, 35, 50, and 70 mm²
- Constructed from stainless steel for corrosion resistance
- Provides flameproof sealing for hazardous environments
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- High voltage cable terminations
- Flameproof and hazardous area electrical installations
- Industrial and mining electrical systems
Standards & Compliance
- Complies with AS/NZS 60079 for Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Supports safe electrical installations minimizing risk of environmental hazards
Warranty Information
1 year warranty covering manufacturing defects and material faults.
Available Now
The Ausproof Ex Armoured PILC Gland 38 - 43 mm SS is available for immediate purchase, ideal for high voltage and hazardous area cable installations.
