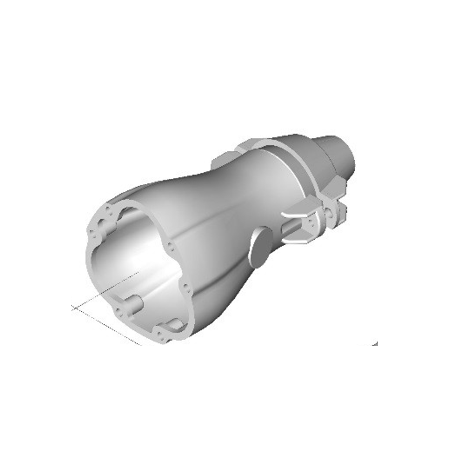

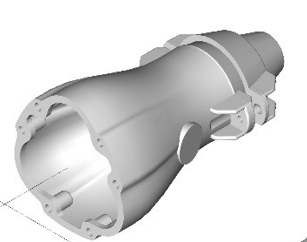

Ex Armoured PILC Gland 43-48mm | Stainless Steel | Flameproof Design | 11/11kV Rated | by Ausproof
The Ex Armoured PILC Gland 43-48mm is designed for high voltage PILC SWA cables, ensuring safe and reliable electrical connections in hazardous environments. With a robust stainless steel construction and flameproof design, it meets 11/11kV voltage applications and is compatible with core sizes of 95mm² and 120mm². Ideal for industrial and hazardous area installations, this gland provides durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Armoured PILC Gland 43-48mm | Stainless Steel | Flameproof Design | 11/11kV Rated | by Ausproof
Brand: Ausproof
SKU: RS947SS
Alternatively Known As: PILC Cable Gland, Armoured Cable Gland, Flameproof Cable Gland, High Voltage Cable Gland
Technical Specifications
- Cable Outer Diameter Under Armour: 43mm-48mm
- Cable Type: PILC
- Voltage Rating: 11/11kV
- Core Size Compatibility: 95mm², 120mm²
- Comp Rubber Size: 43-48mm
- Material: Stainless Steel
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 1.5 kg
Key Features
- Designed for PILC SWA cables with outer diameter 43mm to 48mm
- Suitable for 11/11kV voltage applications
- Compatible with core sizes 95mm² and 120mm²
- Stainless steel construction for corrosion resistance
- Flameproof design compliant with hazardous area requirements
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in high voltage and flameproof equipment to ensure compliance and safety.
Applications
- High voltage cable terminations
- Flameproof electrical installations
- Industrial and hazardous area electrical connections
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Supports safe and reliable electrical connections in hazardous environments, preventing environmental hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Ausproof Ex Armoured PILC Gland 43 - 48 mm SS is available for immediate purchase, ideal for high voltage and hazardous area electrical installations.
