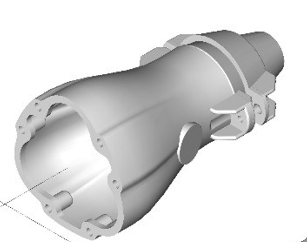

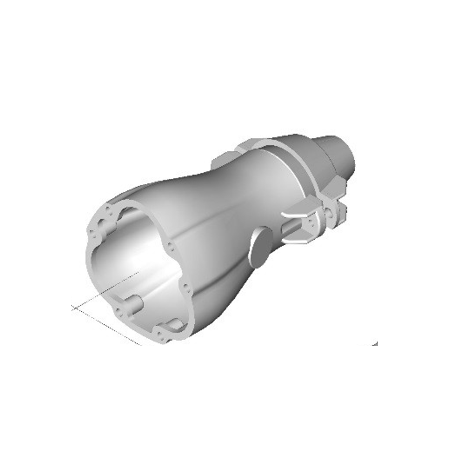

Ex Armoured PILC Gland 48-53 mm | Stainless Steel | Flameproof Design | 11/11kV Rated | by Ausproof
The Ex Armoured PILC Gland 48-53 mm is designed for high voltage PILC SWA cables, ensuring safe and reliable terminations in hazardous areas. With a robust stainless steel construction and flameproof design, it meets the stringent requirements for 11/11kV applications. Ideal for industrial installations, this gland minimizes environmental risks while providing durability and compliance with AS/NZS 60079 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Armoured PILC Gland 48-53 mm | Stainless Steel | Flameproof Design | 11/11kV Rated | by Ausproof
Brand: Ausproof
SKU: RS948SS
Alternatively Known As: PILC Cable Gland, Armoured Cable Gland, Flameproof Cable Gland, Ex Gland for PILC
Technical Specifications
- Cable OD Under Armour: 48mm-53mm
- Cable Type: PILC
- Voltage Rating: 11/11kV
- Core Size: 150 mm²
- Comp Rubber Size: 48-53 mm
- Material: Stainless Steel
- Flameproof design suitable for hazardous areas
- Dimensions (H x L x W): 60mm x 150mm x 60mm
- Weight: 1.5 kg
Key Features
- Designed for PILC SWA cables with outer diameter 48mm-53mm
- Suitable for 11/11kV voltage applications
- Stainless steel construction for corrosion resistance
- Flameproof design compliant with hazardous area requirements
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with high voltage and flameproof equipment to ensure compliance and safety.
Applications
- High voltage cable terminations
- Industrial and hazardous area electrical installations
- Flameproof and explosion-proof environments
Standards & Compliance
- Complies with AS/NZS 60079 for electrical equipment in explosive atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Supports safe electrical installations minimizing risk of environmental hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Ausproof Ex Armoured PILC Gland 48 - 53 mm SS is available for immediate purchase, ideal for high voltage and hazardous area cable installations.
