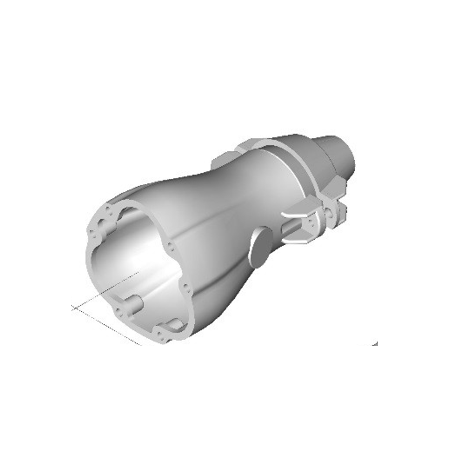

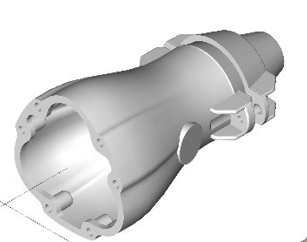

Ex Armoured PILC Gland 73-78 mm | Stainless Steel | Flameproof Certification | 11/11kV Voltage Rating | by Ausproof
The Ex Armoured PILC Gland 73-78 mm is designed for high voltage PILC SWA cables, providing reliable flameproof sealing and mechanical protection. Constructed from durable stainless steel, it ensures corrosion resistance and is suitable for 11/11kV voltage applications. Ideal for industrial and mining electrical installations, this gland enhances safety in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Armoured PILC Gland 73-78 mm | Stainless Steel | Flameproof Certification | 11/11kV Voltage Rating | by Ausproof
Brand: Ausproof
SKU: RS953SS
Alternatively Known As: PILC Cable Gland, Armoured Cable Gland, Flameproof Cable Gland, Ex Gland for PILC Cable
Technical Specifications
- Cable OD Under Armour: 73mm-78mm
- Cable Type: PILC
- Voltage Rating: 11/11kV
- Core Size: 400 mm²
- Comp Rubber Size: 73-78 mm
- Material: Stainless Steel
- Flameproof Certification: Ex118BSS Range
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.5 kg
Key Features
- Designed for PILC SWA cables with outer diameter 73mm-78mm
- Suitable for 11/11kV voltage rating
- Stainless steel construction for corrosion resistance
- Compatible with 400 mm² core size cables
- Provides flameproof sealing and mechanical protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in high voltage and flameproof equipment to ensure compliance and safety.
Applications
- High voltage cable terminations
- Industrial and mining electrical installations
- Flameproof and hazardous area electrical systems
Standards & Compliance
- Complies with AS/NZS 60079 for Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Enhances safety in hazardous environments, preventing electrical faults and environmental hazards
Warranty Information
1 year warranty covering manufacturing defects and workmanship.
Available Now
The Ausproof Ex Armoured PILC Gland 73 - 78 mm SS is available for immediate purchase, ideal for high voltage and hazardous area cable installations.
