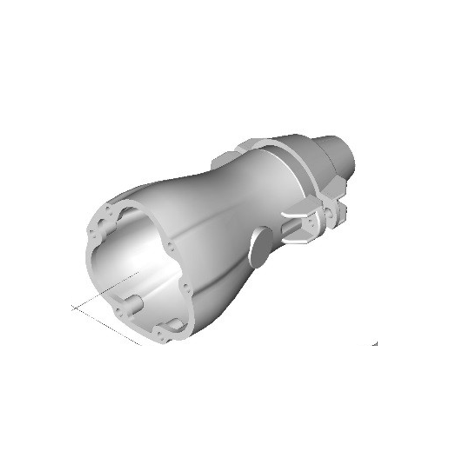

Ex Armoured XLPE Gland 43-48mm | Stainless Steel | Flameproof Design | 6.35/11kV Rated | by Ausproof
The Ex Armoured XLPE Gland 43-48mm is designed for high voltage cable terminations, featuring a robust stainless steel construction and flameproof certification for hazardous areas. Ideal for industrial and mining electrical systems, this gland supports safe and reliable connections, ensuring compliance with AS/NZS 60035 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Armoured XLPE Gland 43-48mm | Stainless Steel | Flameproof Design | 6.35/11kV Rated | by Ausproof
Brand: Ausproof
SKU: RS957SS
Alternatively Known As: XLPE Armoured Cable Gland, Flameproof Cable Gland, Ex Gland for XLPE Cable, Stainless Steel Cable Gland
Technical Specifications
- Cable Outer Diameter Under Armour: 43mm-48mm
- Cable Type: XLPE
- Voltage Rating: 6.35/11kV
- Core Size Compatibility: 35mm², 50mm²
- Comp Rubber Size: 43-48mm
- Material: Stainless Steel
- Flameproof Certification: Suitable for hazardous areas
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 1.5 kg
Key Features
- Suitable for XLPE SWA cables with outer diameter 43mm to 48mm
- Designed for 6.35/11kV voltage rating
- Compatible with core sizes 35mm² and 50mm²
- Stainless steel construction for corrosion resistance
- Flameproof design compliant with hazardous area requirements
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with flameproof and hazardous area equipment to ensure compliance and safety.
Applications
- High voltage cable terminations
- Flameproof and hazardous area electrical installations
- Industrial and mining electrical systems requiring armoured cable glands
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Supports safe and reliable electrical connections in hazardous environments, preventing environmental hazards
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Ausproof Ex Armoured XLPE Gland 43 - 48 mm SS is available for immediate purchase, ideal for high voltage and hazardous area cable installations.
