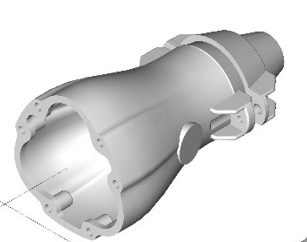

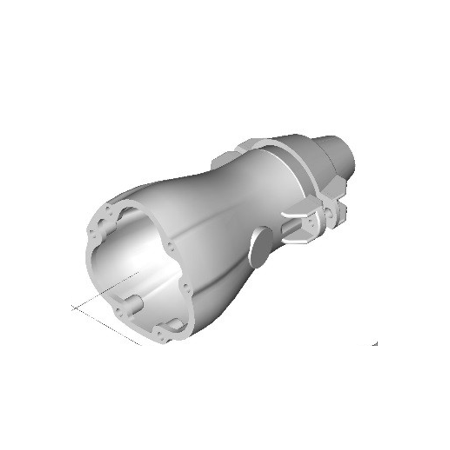

Ex Armoured XLPE Gland 68-73mm | Stainless Steel | 12.7/22kV Rated | Flameproof Sealing | by Ausproof
The Ex Armoured XLPE Gland 68-73mm is designed for high voltage cable terminations, featuring a robust stainless steel construction and a voltage rating of 12.7/22kV. Ideal for flameproof and hazardous area installations, this gland ensures mechanical protection and compliance with AS/NZS 60035 standards, making it perfect for industrial and mining electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Armoured XLPE Gland 68-73mm | Stainless Steel | 12.7/22kV Rated | Flameproof Sealing | by Ausproof
Brand: Ausproof
SKU: RS962SS
Alternatively Known As: XLPE Cable Gland, Flameproof Cable Gland, Armoured Cable Gland, High Voltage Cable Gland
Technical Specifications
- Cable OD Under Armour: 68mm-73mm
- Cable Type: XLPE
- Voltage Rating: 12.7/22kV
- Core Size Compatibility: 120, 150 mm²
- Comp Rubber Size: 68-73 mm
- Material: Stainless Steel
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 1.5 kg
Key Features
- Designed for XLPE SWA cables with outer diameter 68mm-73mm
- Suitable for 12.7/22kV voltage rating
- Compatible with core sizes 120 and 150 mm²
- Stainless steel construction for corrosion resistance
- Provides flameproof sealing and mechanical protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in high voltage and flameproof equipment to ensure compliance and safety.
Applications
- High voltage cable terminations
- Flameproof and hazardous area electrical installations
- Industrial and mining electrical systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Enhances safety in hazardous environments, preventing electrical faults and fires
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Ausproof Ex Armoured XLPE Gland 68 - 73 mm SS is available for immediate purchase, ideal for high voltage and hazardous area electrical installations.
