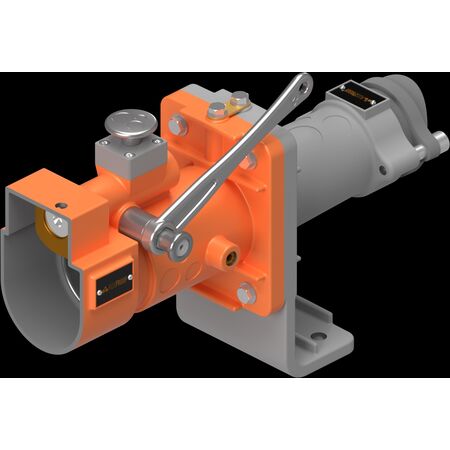

Ex-Certified 150A 4P Gland Bracket | 660V to 1100V | IP55 Rated | Quick Release by Ausproof
The Ex-certified 150A 4P gland bracket operates at 660V to 1100V and features IP55 ingress protection—ideal for mining and hazardous environments. Built for professionals, it offers quick release and easy termination for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PS 660V 150A 4P Gland Bracket (270) 50-C 45-50-G (241.1)
Brand: Ausproof
SKU: RS2490
Alternatively Known As: Ex-certified 150A 4 Pole Gland Bracket, PS Range 660V Plug and Receptacle, Flameproof Electrical Connector
Technical Specifications
- Voltage: 660 to 1,100V
- Current: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 4.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 4.2kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 150A
- Weight: Receptacle 7.9kg, Plug 4.1kg
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 200mm x 270mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified professionals experienced with Ex-certified electrical equipment and hazardous environment standards.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PS 660V 150A 4P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
