Home/Electrical/Industrial/Industrial Outlets/Ex-Certified 300A 6P Plug | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof

Trade Discount 19%

PL 3300V 300A 6P Plug (270) 150-C 75-80-G (245.3)

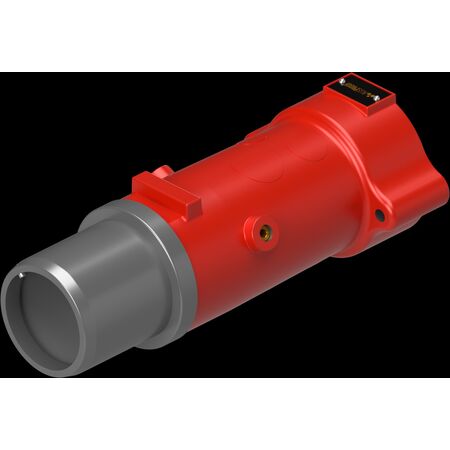

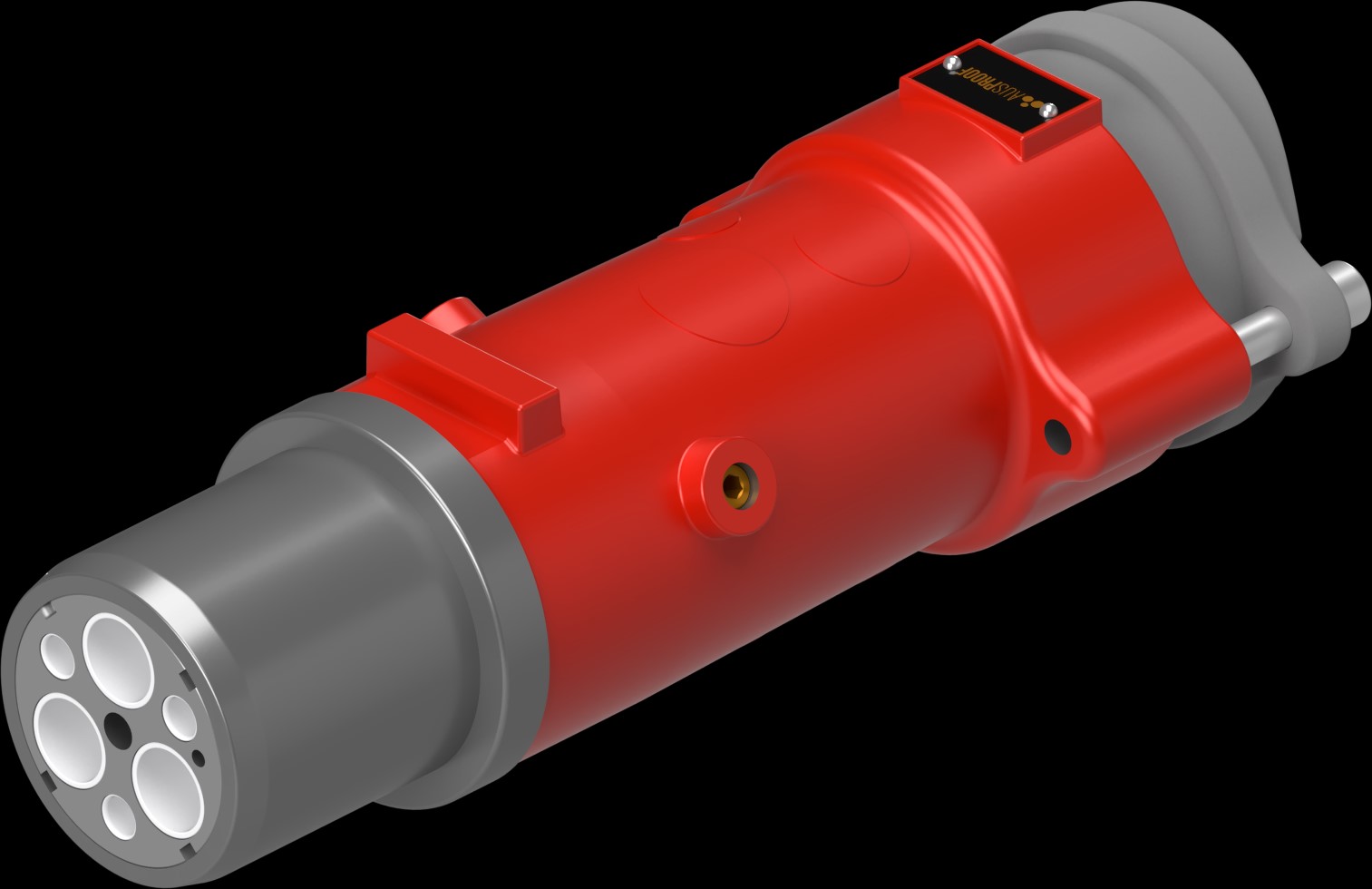

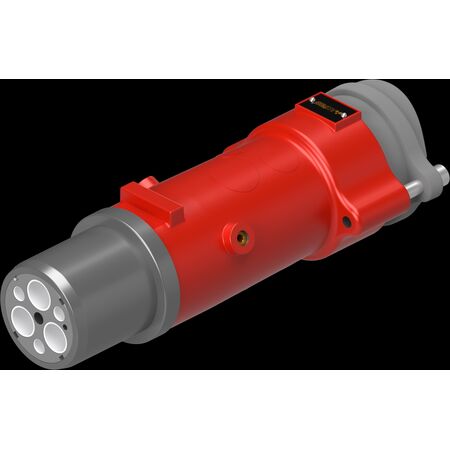

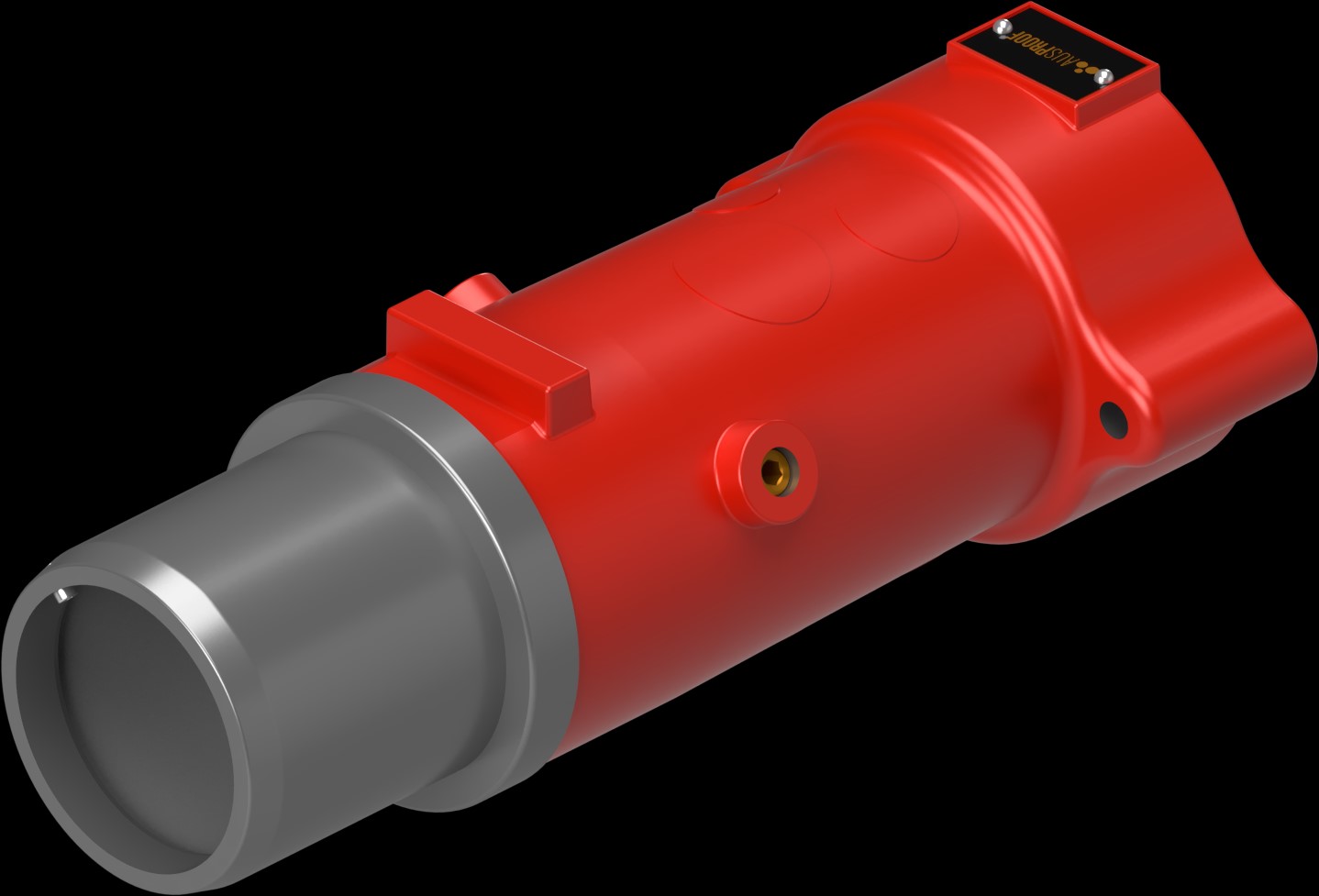

Ex-Certified 300A 6P Plug | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS2206

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

The Ex-certified 300A 6P plug operates at 660V to 3300V and features IP55 ingress protection—ideal for mining and hazardous environments. Built for durability with stainless steel construction, it offers quick release and easy termination for efficient installations.

Description

Product Name/Title: PL 3300V 300A 6P Plug (270) 150-C 75-80-G (245.3)

Brand: Ausproof

SKU: RS2206

Alternatively Known As: Ex-certified 300A 6-pin plug, Mining plug, Flameproof plug, Stainless steel industrial plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Dimensions (H x L x W): 150mm x 80mm x 245mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy on-site flameproof repair minimizes waste and downtime.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 3300V 300A 6P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial environments.
