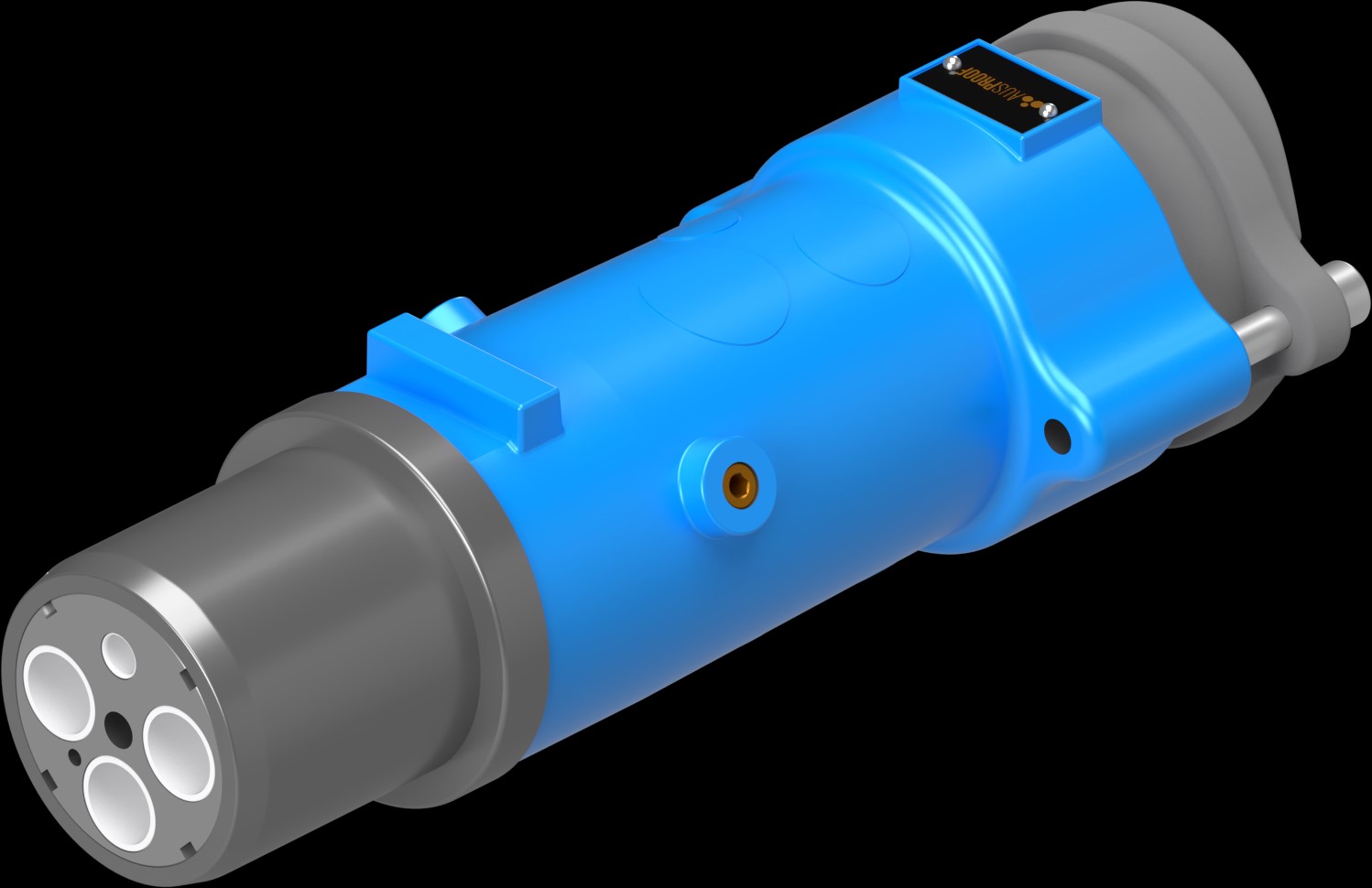

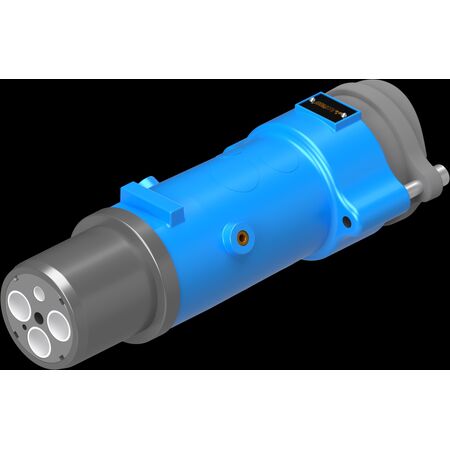

Ex-Certified 4-Pin Plug 300A | IP55 Rated | Quick Release & Flameproof Design | Ausproof

BRAND: Ausproof

SKU: RS2175

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

The Ex-certified 4-pin plug with a 300A rating and IP55 ingress protection is ideal for mining and hazardous environments. Built for durability with stainless steel construction, it features quick release and easy termination for reliable electrical connections.

Description

Product Name/Title: PL 1100V 300A 4P Plug (90) 25-C 30-35-G (275.1)

Brand: Ausproof

SKU: RS2175

Alternatively Known As: Ex-certified 4-pin plug, 300A industrial plug, flameproof electrical plug, mining plug 1100V

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with hazardous area electrical equipment and compliant with AS/NZS 1299 standards.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment in Hazardous Areas

Environmental Benefits

Durable stainless steel construction reduces waste and replacement frequency
Flameproof repairable design minimizes full product replacement

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 1100V 300A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial environments requiring robust and certified electrical connections.
