Making Trade Life Easy!

Home/Electrical/Industrial/Industrial Outlets/Ex-Certified 6 Pin Receptacle 300A | IP55 Rated | Quick Release & Flameproof Design | Ausproof

Trade Discount 19%

Ex-Certified 6 Pin Receptacle 300A | IP55 Rated | Quick Release & Flameproof Design | Ausproof

BRAND: Ausproof

SKU: RS1480

$1,868.60 List price: $2,320.80

+ −

30 Days Return Delivery Options

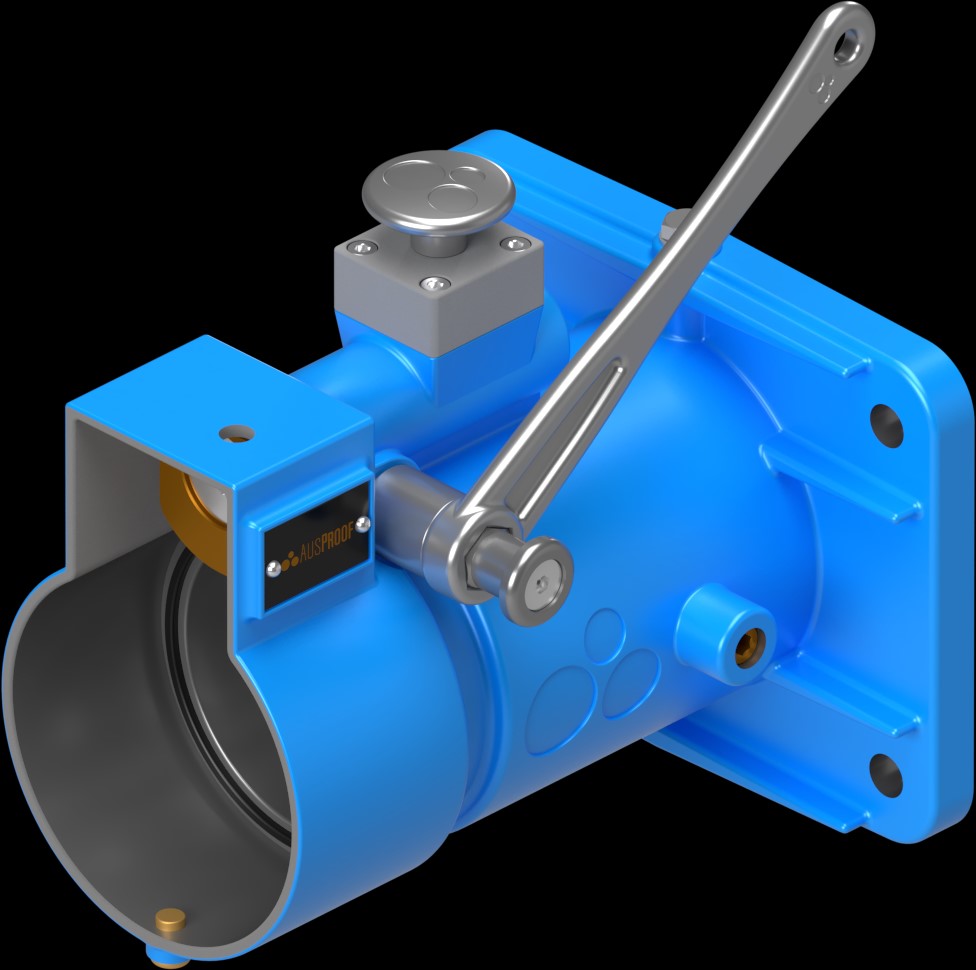

Ex-certified 6 pin receptacle with a 300A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for durability with stainless steel construction, featuring quick release and easy flameproof repair for efficient operation.

Description

Product Name/Title: PL 1100V 300A 6P Receptacle (90) 95-C

Brand: Ausproof

SKU: RS1480

Alternatively Known As: PL Range Receptacle, Ex-certified 6 Pin Receptacle, Flameproof Receptacle 300A, Mining Receptacle 1100V

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site repairs.

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL 1100V 300A 6P Receptacle is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
