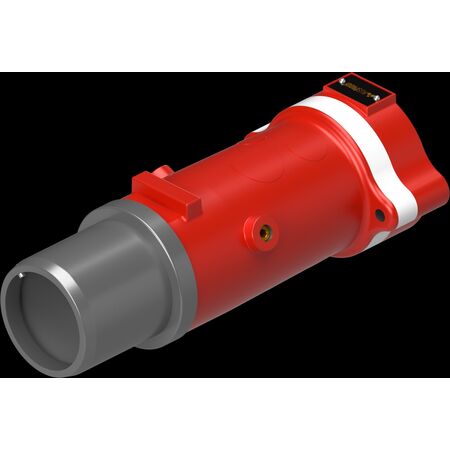

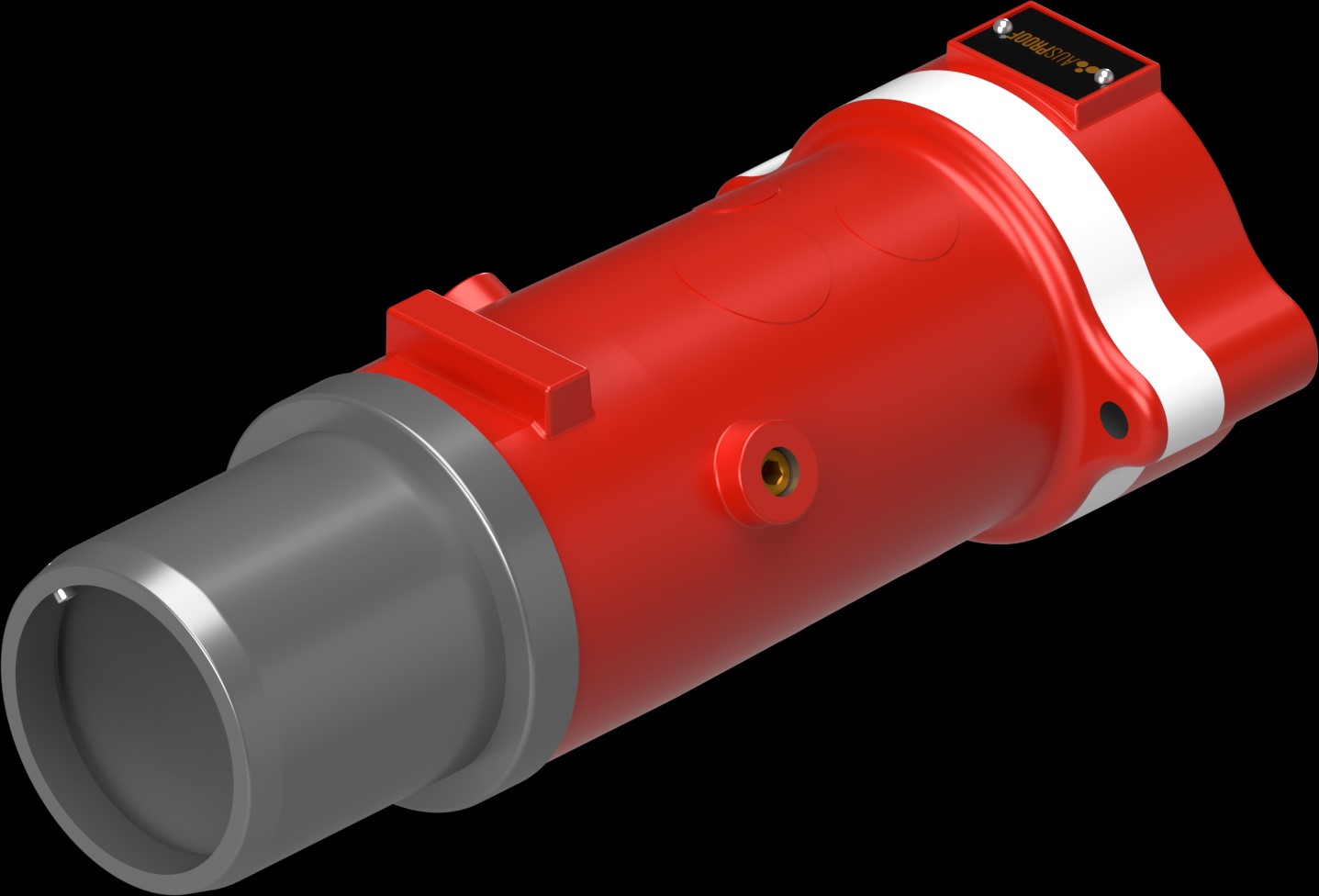

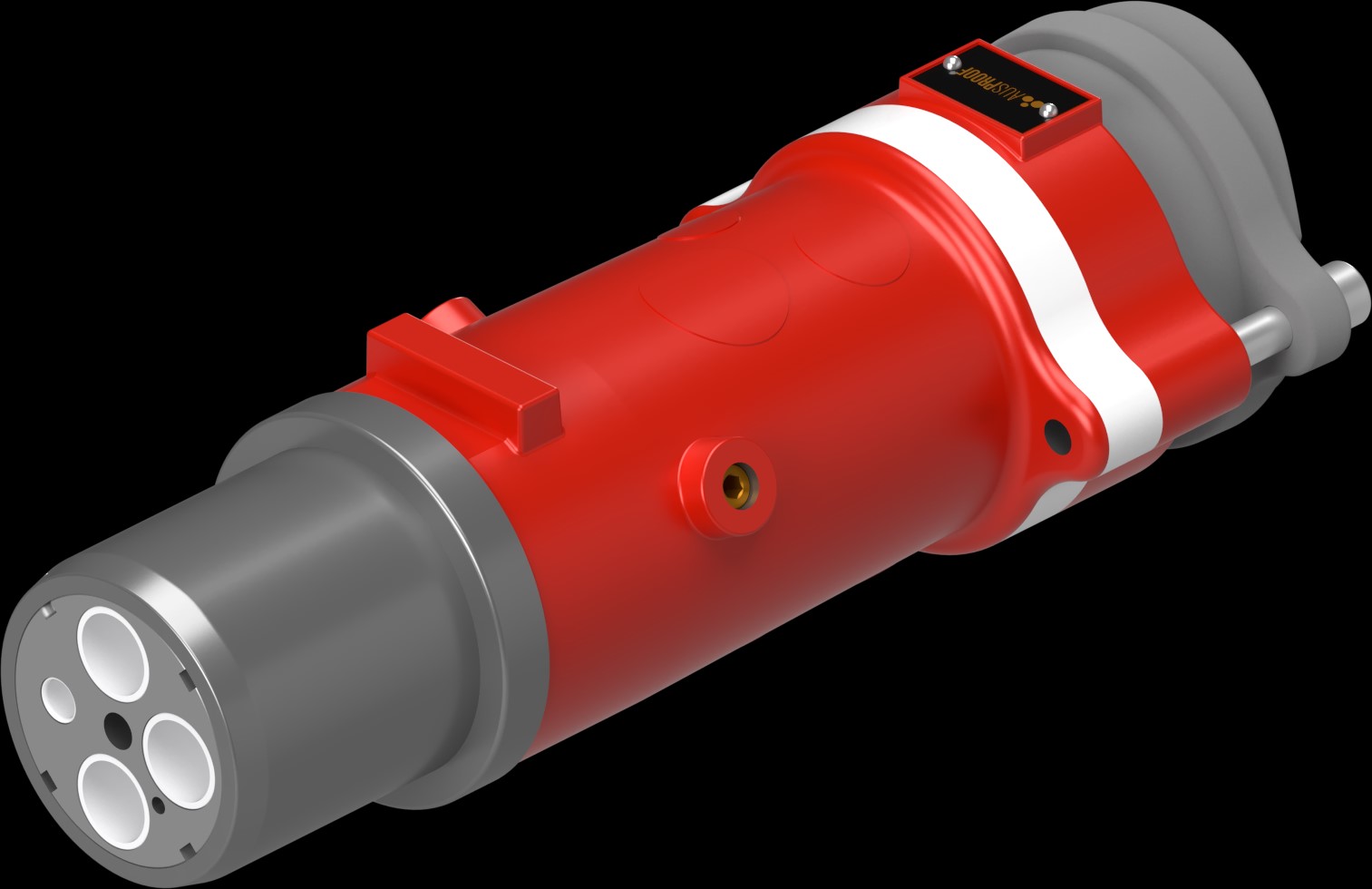

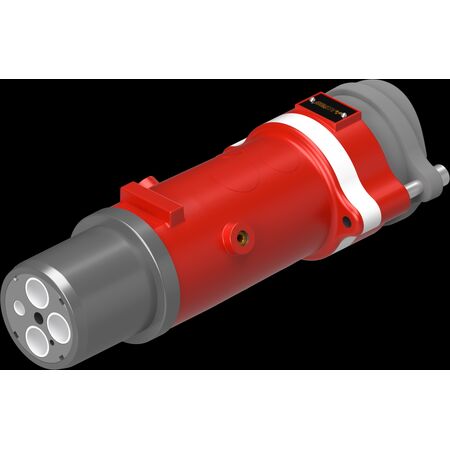

Ex Certified Heavy Duty Plug | 3300V | 425A Current Rating | IP55 Ingress Protection by Ausproof
The Ex Certified Heavy Duty Plug is designed for hazardous environments, featuring a 3300V voltage range and 425A current rating. Ideal for mining and tunnelling operations, it offers quick release mechanism and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 425A 4P Plug (180) 185-C 75-80-G (241.3)
Brand: Ausproof
SKU: RS1564
Alternatively Known As: Ex Certified Heavy Duty Plug, Flameproof Industrial Plug, Mining Electrical Plug, Hazardous Area Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: 9.0 kg
- Dimensions (H x L x W): 241mm x 185mm x 180mm
- Weight: 9.0 kg
Key Features
- Quick Release mechanism for ease of use
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining and tunnelling operations
- Commercial hazardous environments
- Group 1 hazardous locations requiring flameproof electrical equipment
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairability minimizes waste by allowing on-site body casting replacement
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 3300V 425A 4P Plug is available for immediate purchase, ideal for mining, tunnelling, and commercial hazardous environment applications.
