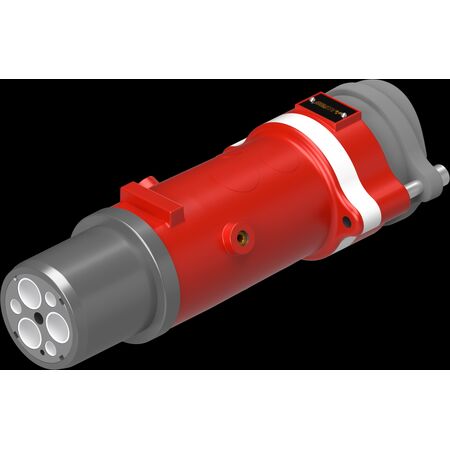

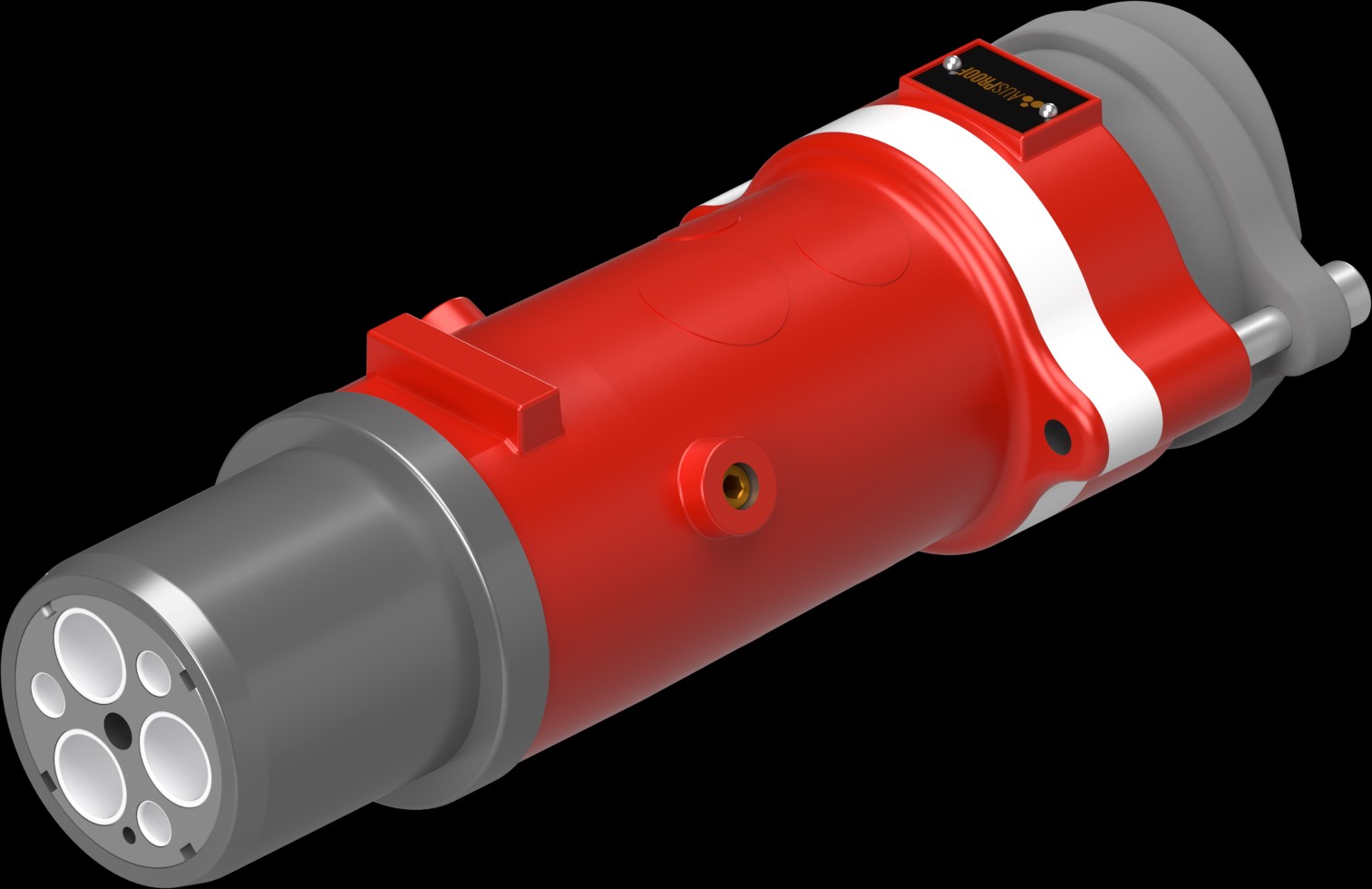

Ex-Certified Heavy Duty Plug | 425A Current Rating | IP55 Ingress Protection | Stainless Steel by Ausproof
The Ex-certified heavy duty plug features a 425A current rating and IP55 ingress protection—ideal for mining and tunnelling operations. Built for industrial applications requiring flameproof equipment, it offers quick release mechanism and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 425A 6P Plug (180) 185-C 75-80-G (241.3)
Brand: Ausproof
SKU: RS1582
Alternatively Known As: Ex-certified heavy duty plug, flameproof industrial plug, mining electrical plug, stainless steel power plug
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 241mm x 185mm x 180mm
- Weight: 9.0 kg
Key Features
- Quick Release mechanism for ease of use
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.
Applications
- Mining and tunnelling operations
- Commercial applications in Group 1 hazardous environments
- Industrial low voltage power connections requiring flameproof equipment
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairability minimizes waste by allowing on-site body casting replacement
- Lightweight design reduces material usage and transportation emissions
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 3300V 425A 6P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
