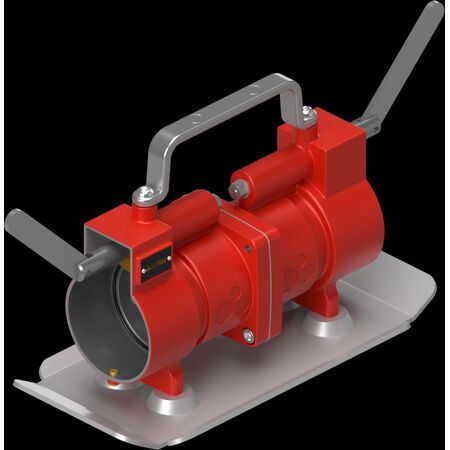

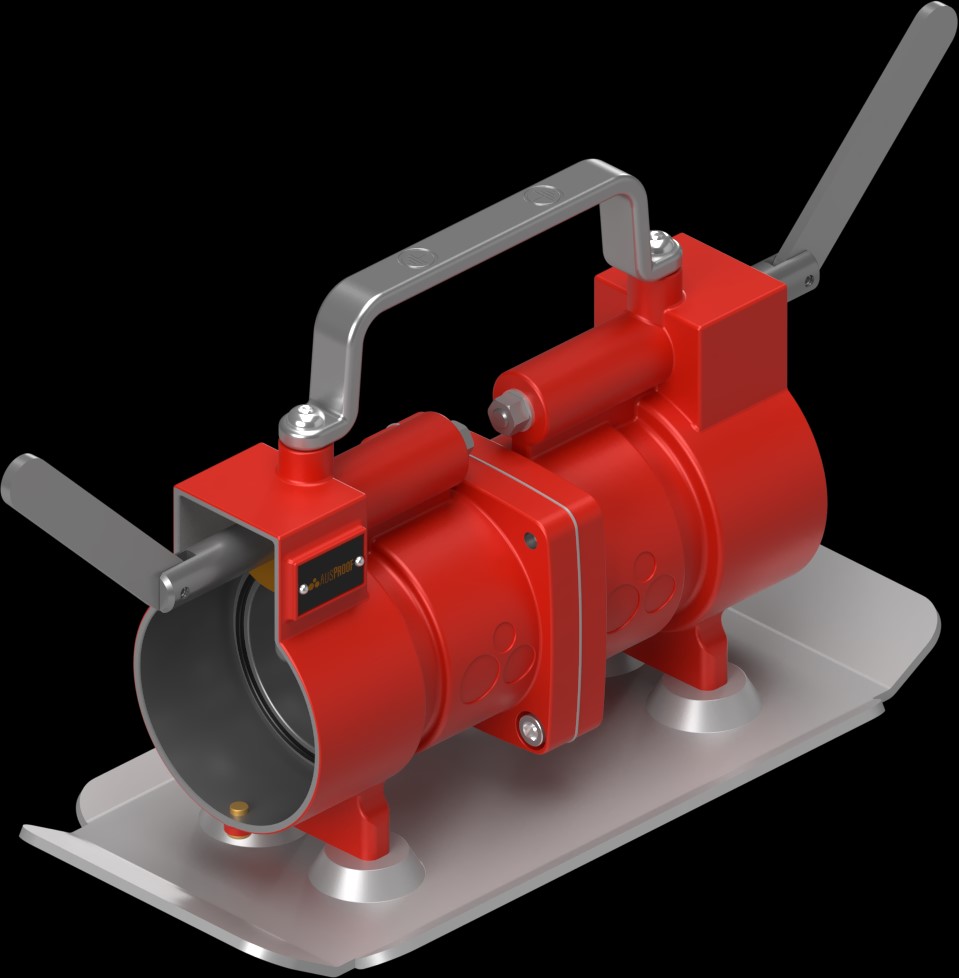

Ex-Certified Industrial Plug 3300V 300A 4P | IP55 Ingress Protection | Quick Release & Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS2468

$2,887.50 List price: $3,586.30

+ −

30 Days Return Delivery Options

Ex-certified industrial plug with 3300V operating voltage and 300A current rating—ideal for mining and hazardous environments. Built for safety and durability, featuring quick release and stainless steel construction for reliable performance.

Description

Product Name/Title: PL B2B 3300V 300A 4P Full Assembly

Brand: Ausproof

SKU: RS2468

Alternatively Known As: PL Range Plug and Receptacle, Ex-certified Industrial Plug, Flameproof Electrical Connector, Mining Electrical Plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: Receptacle 10.7kg, Plug 9.0kg
Dimensions (H x L x W): 200mm x 400mm x 300mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance with safety standards.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy flameproof repair reduces waste by allowing on-site body casting replacement.

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL B2B 3300V 300A 4P Full Assembly is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial environments requiring robust and certified electrical connections.
