Ex-Certified Industrial Plug 3300V 300A | IP55 Rated | Quick Release & Stainless Steel by Ausproof
Ex-certified industrial plug with 3300V operating voltage and 300A current rating—ideal for mining and hazardous environments. Built for safety and compliance, featuring quick release and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

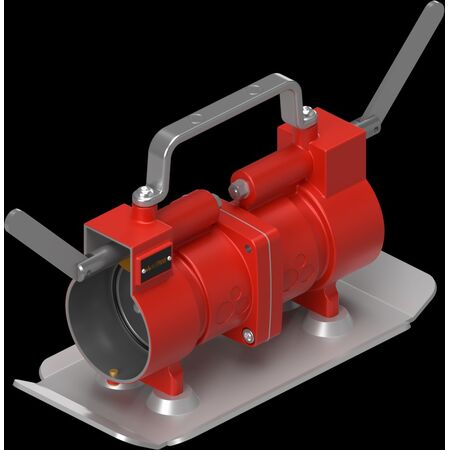

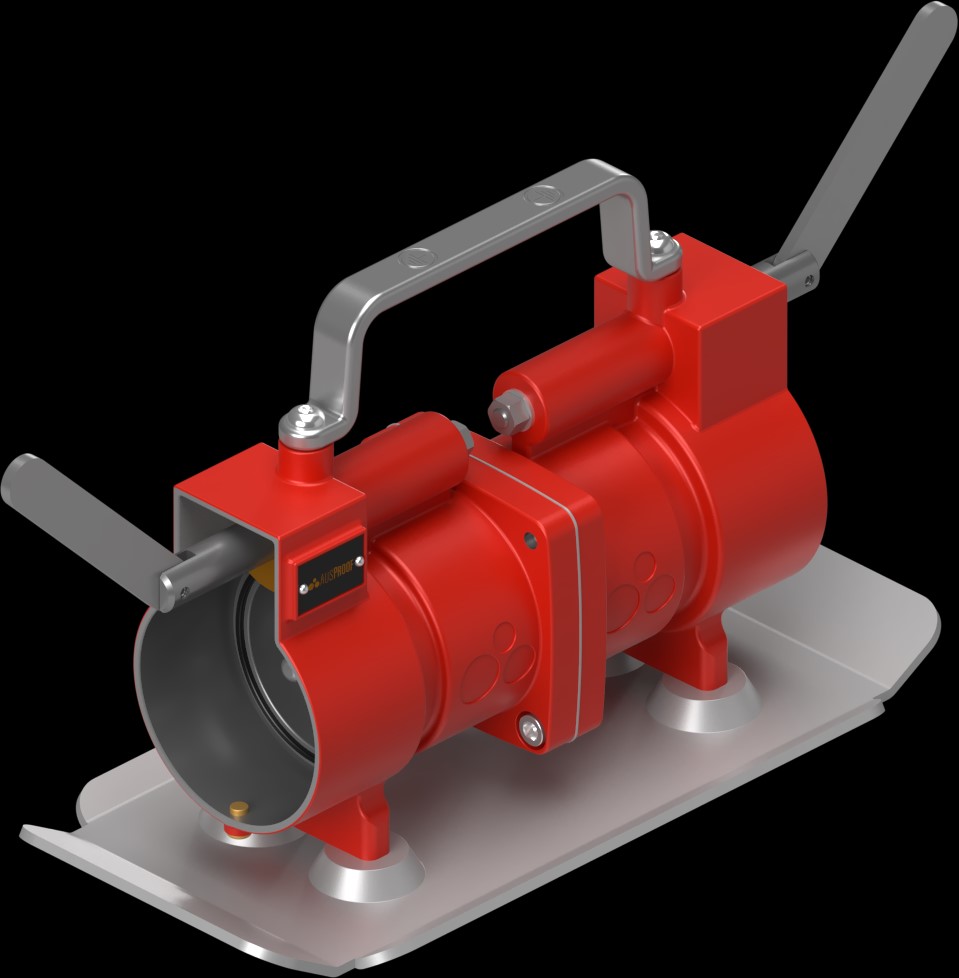

Product Name/Title: PL B2B QR 3300V 300A 6P Full Assembly
Brand: Ausproof
SKU: RS2470QR
Alternatively Known As: PL Range Plug and Receptacle, Ex-certified Industrial Plug, Flameproof Electrical Connector, Mining Electrical Connector
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 KG
- Receptacle Weight: 10.7 KG
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Easy on-site flameproof repair minimizes disposal of entire units
- Lightweight design reduces material usage and transportation emissions
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL B2B QR 3300V 300A 6P Full Assembly is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
