PL 3300V 425A 6P Plug (180) 150-C 70-75-G (241.3)

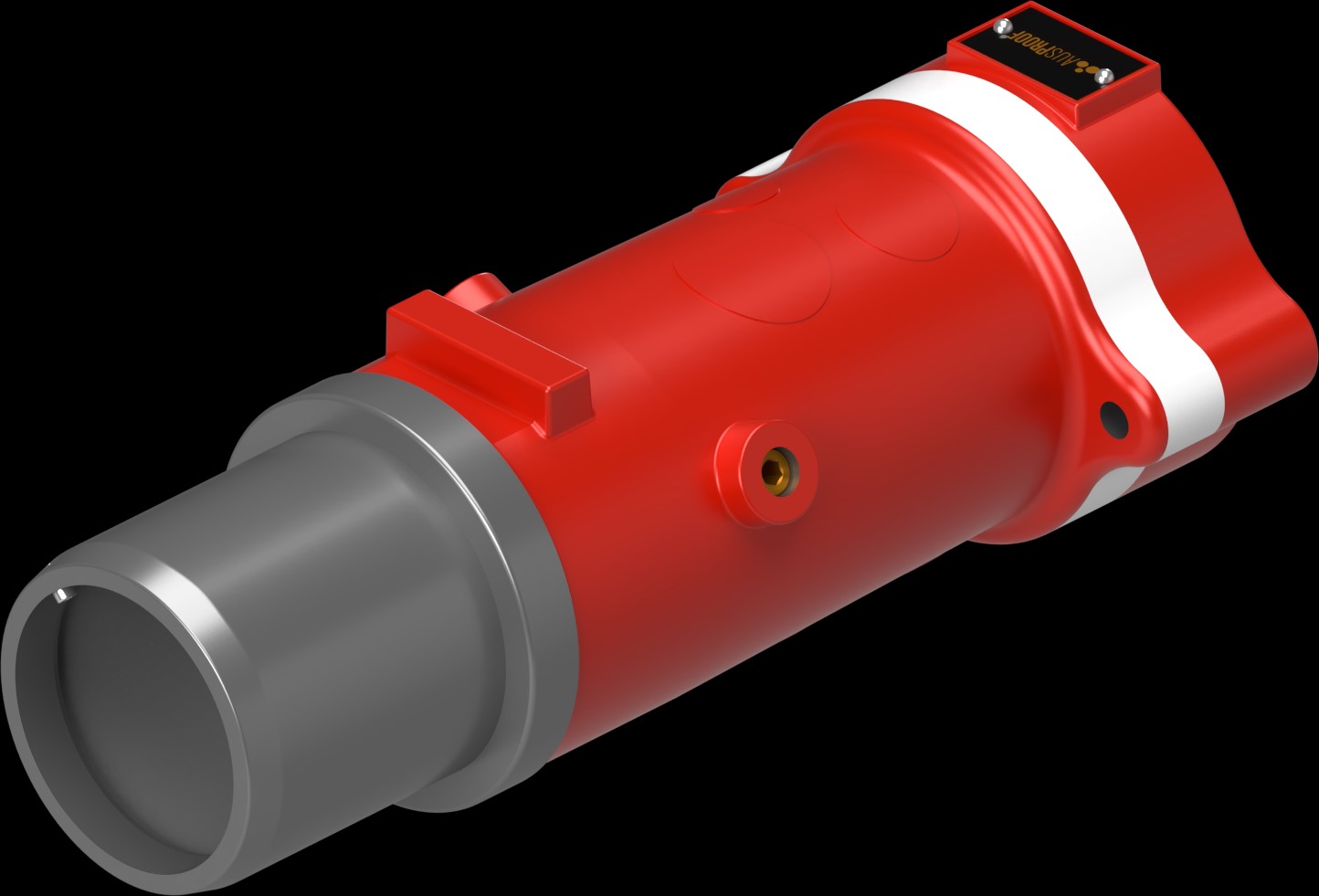

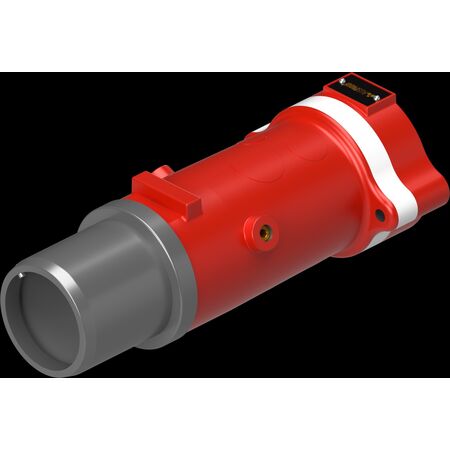

Ex-Certified Industrial Plug | 3300V | 425A Current Rating | IP55 Ingress Protection by Ausproof

BRAND: Ausproof

SKU: RS1581

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

The Ex-certified industrial plug offers a voltage range of 660V to 3300V and a robust 425A current rating—ideal for mining and hazardous environments. Built for safety and durability, it features quick release functionality and stainless steel construction for reliable performance.

Description

Product Name/Title: PL 3300V 425A 6P Plug (180) 150-C 70-75-G (241.3)

Brand: Ausproof

SKU: RS1581

Alternatively Known As: Ex-certified industrial plug, mining plug, hazardous area plug, flameproof plug, quick release plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 241mm x 75mm x 180mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste and replacement frequency
Easy on-site repair reduces need for full product replacement

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 3300V 425A 6P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
