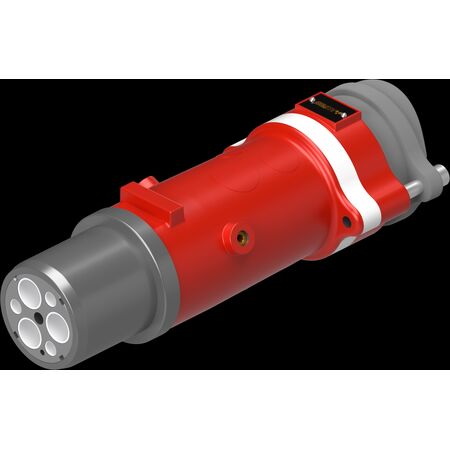

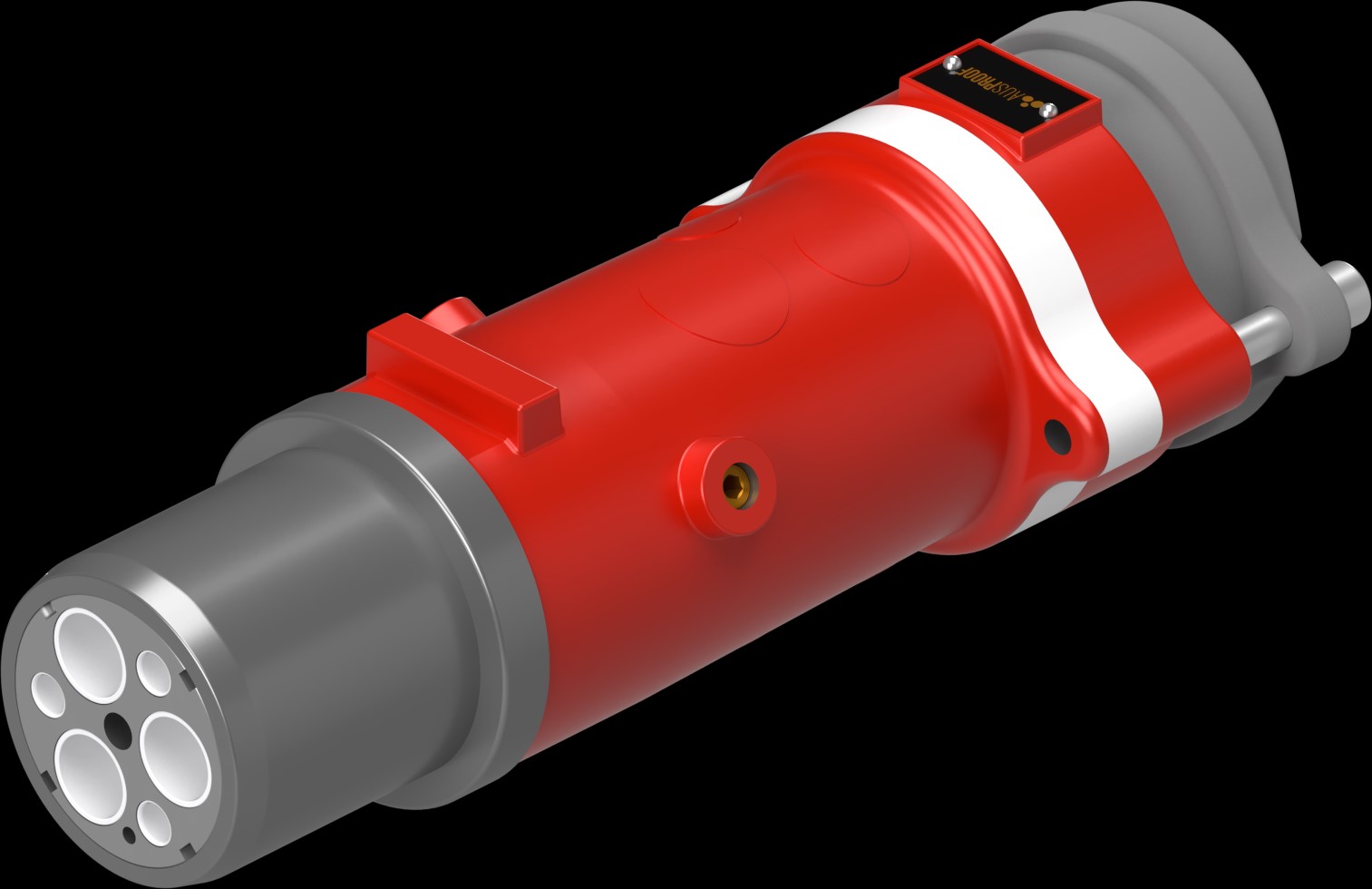

Ex-Certified Industrial Plug | 3300V | 425A Current Rating | IP55 Ingress Protection by Ausproof
The Ex-certified industrial plug offers a voltage range of 660V to 3300V and a robust 425A current rating—ideal for mining and hazardous environments. Built for durability with stainless steel construction, it features quick release and easy termination for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 425A 6P Plug (180) 25-C 45-50-G (241.3)
Brand: Ausproof
SKU: RS1575
Alternatively Known As: Ex-certified industrial plug, mining plug, flameproof plug, hazardous area plug, stainless steel electrical plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 241mm x 180mm x 180mm
- Weight: 9.0 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 for electrical equipment in hazardous areas
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability reduces waste by allowing on-site repairs without full replacement.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 3300V 425A 6P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
