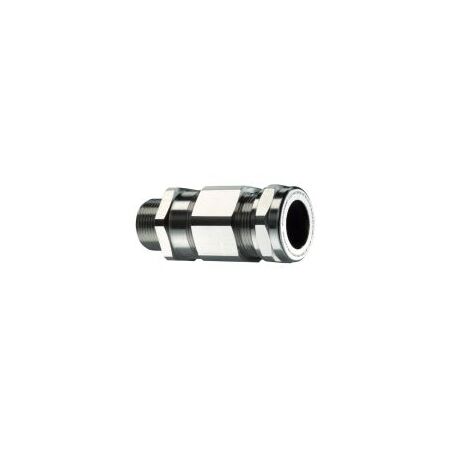

Ex de Armoured Barrier Gland M25 16-21mm Nickel Brass Kopex
Kopex Armoured Barrier Gland M25 features 16-21mm range, compound barrier seal, ATEX IECEx rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Kopex-Ex M25 Barrier Gland, Ex d Ex e Armoured Cable Gland, Nickel-Plated Brass Hazardous Area Cable Gland
Technical Specifications
- Model: EXN05MC5
- Thread Size: M25 x 1.5
- Cable Diameter Range: 16.0–21.0 mm
- Material: Nickel-plated brass
- Gland Type: Ex d e armoured compound barrier flameproof gland
- Suitable Cable Types: SWA, SWB, AWA and STA armoured cables
- Ingress Protection: IP66
- Operating Temperature: -60°C to +100°C
- Barrier Seal: Epoxy compound barrier with outer compression seal
- Torque, SW2: 45 Nm
- Torque, SW3: 27 Nm
- Product Approvals: ATEX and IECEx
- Conformity Standards: EN/IEC 60079-0, 60079-1, 60079-7 and 60079-31; EN 62444
- Hazardous Area Suitability: Gas Zones 1 and 2; Dust Zones 21 and 22
- Environmental Compliance: RoHS compliant
- Dimensions (H x L x W): 72.1mm x 37mm x 37mm
- Weight: 0.35 kg
Key Features
- Flameproof Ex d and increased safety Ex e protection
- Compound epoxy barrier seal for armoured cable entries
- Suitable for steel wire armoured, steel wire braid, aluminium wire armoured and steel tape armoured cables
- Nickel-plated brass construction provides corrosion resistance
- Suitable for hazardous-area control panels, junction boxes, lighting, power distribution and machinery
- IP66 ingress protection
- Wide 16–21 mm cable clamping range
- Certified for use in gas and dust hazardous areas
Professional Installation Requirements
- Installation must be carried out by a suitably licensed and competent hazardous-area electrical installer in accordance with the manufacturer's instructions, applicable certification requirements and AS/NZS 60079.14. Correct barrier compound preparation, cable preparation, gland torque and sealing are essential to maintain Ex protection.
Applications
- Hazardous-area control panels and junction boxes
- Oil and gas processing equipment
- Chemical processing plants
- Power distribution equipment in classified areas
- Industrial machinery installed in Zones 1, 2, 21 or 22
- Armoured cable entries for lighting and electrical enclosures
Standards & Compliance
- Applicable installation requirements: AS/NZS 60079.14 for electrical installations in explosive atmospheres
- Product design and certification references IEC 60079-0, IEC 60079-1, IEC 60079-7 and IEC 60079-31, adopted within the AS/NZS IEC 60079 series where applicable
- EN 62444 cable gland requirements
Environmental Benefits
- Nickel-plated brass is recyclable at end of service life
- RoHS compliance limits the use of specified hazardous substances
- Durable metallic construction and hazardous-area certification support extended service life and reduced replacement waste
- IP66 sealing helps protect connected equipment from dust and water ingress, supporting equipment longevity
Warranty Information
ABB standard product warranty terms should be confirmed with the authorised Australian distributor at purchase; ABB published terms commonly provide a 24-month warranty for standard products, subject to the applicable sale contract and exclusions.
Available Now
Available through KOPEX-Ex/ABB and authorised Australian electrical and industrial distributors, subject to distributor stock.
