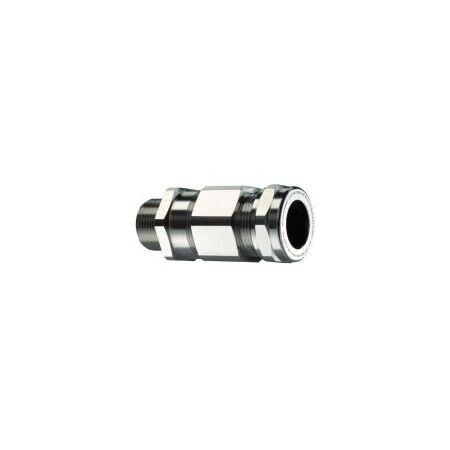

Ex de Armoured Barrier Gland M32 16-26mm Nickel Brass Kopex
Kopex Armoured Barrier Gland M32 features 16-26mm range, compound barrier seal, ATEX IECEx rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EXN06MC5, Kopex-Ex C5 Series Barrier Gland, Ex d e Armoured Cable Gland, Hazardous Area Cable Gland
Technical Specifications
- Model: EXN06MC5
- Thread: M32 x 1.5 metric
- Cable Diameter Range: 16.0–26.0 mm
- Gland Type: Ex d e armoured compound barrier flameproof cable gland
- Material: Brass with nickel-plated finish
- Cable Compatibility: SWA, SWB and AWA armoured cables
- Hazardous Area Application: Gas Zones 1 and 2; dust Zones 21 and 22
- Ingress Protection: IP66; catalogue classification also lists IP68
- Operating Temperature: -60°C to +60°C according to product ecatalogue; Kopex-Ex C5 documentation states a wider system temperature capability subject to installation conditions
- Thread Length: 16 mm
- Overall Diameter: 45 mm
- Spanner Sizes: SW1 42 mm, SW2 42 mm, SW3 40 mm
- Recommended Torque: SW2 65 Nm; SW3 32 Nm
- Approvals: ATEX and IECEx hazardous-area product range
- Referenced Product Standards: EN 60079-0, EN 60079-1, EN 60079-7 and EN 60079-31
- Substance Compliance: RoHS3 and REACH compliant
- Dimensions (H x L x W): 76mm x 76mm x 45mm
- Weight: 0.45 kg
Key Features
- Compound barrier seal for armoured cable termination
- Combined Ex d flameproof and Ex e increased-safety protection
- Suitable for cable diameters from 16 to 26 mm
- Nickel-plated brass construction for corrosion resistance
- Designed for hazardous gas and dust zones
- Suitable for SWA, SWB and AWA armoured cables
- Wide operating-temperature capability for demanding industrial environments
- Straight metric M32 x 1.5 entry
- Provides sealed cable entry through threaded enclosures
Professional Installation Requirements
- Installation must be performed by a suitably qualified electrician or hazardous-area specialist in accordance with the manufacturer's instructions and AS/NZS 60079.14. The barrier compound must be correctly prepared, applied and cured, and the gland selected for the cable, enclosure and hazardous-area classification.
Applications
- Hazardous-area control panels and junction boxes
- Oil and gas processing equipment
- Petrochemical and chemical plant
- Industrial motors and electrical enclosures
- Power distribution equipment in explosive atmospheres
- Mining and processing installations with classified gas or dust zones
Standards & Compliance
- Applicable installation standard: AS/NZS 60079.14:2022, Explosive atmospheres – Electrical installations design, selection and erection
- Applicable hazardous-area construction framework: AS/NZS 60079.0, Explosive atmospheres – Equipment – General requirements
- Applicable flameproof protection framework: AS/NZS 60079.1, Explosive atmospheres – Equipment protection by flameproof enclosures 'd'
- Applicable increased-safety framework: AS/NZS 60079.7, Explosive atmospheres – Equipment protection by increased safety 'e'
- Applicable dust-enclosure protection framework: AS/NZS 60079.31, Explosive atmospheres – Equipment dust ignition protection by enclosure 't'
Environmental Benefits
- Brass is highly recyclable at end of service life
- Nickel plating helps resist corrosion and can extend product service life
- RoHS3 and REACH compliance supports reduced use of restricted substances
- Durable hazardous-area construction can reduce replacement frequency and associated material waste
Warranty Information
ABB Australia standard sale conditions provide a 12-month warranty period for goods, subject to the applicable terms, correct handling, installation, use and maintenance.
Available Now
Available through KOPEX-Ex/ABB and authorised Australian electrical and hazardous-area equipment distributors.
