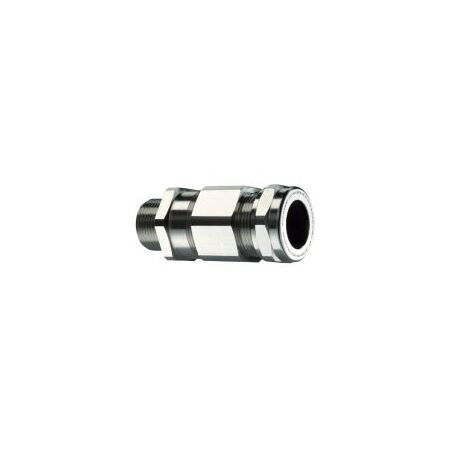

Ex de Armoured Barrier Gland M40 29-41mm Nickel Brass Kopex
Kopex Armoured Barrier Gland M40 features 29-41mm range, compound barrier seal, ATEX IECEx rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Kopex-Ex C5 Series Barrier Gland, Ex d e Armoured Cable Gland, Hazardous Area Barrier Gland, EXN07MC5
Technical Specifications
- Model: EXN07MC5
- Thread: M40 x 1.5 metric
- Cable Diameter Range: 29–41 mm
- Material: Nickel-plated brass
- Gland Type: Armoured compound barrier, Ex d e
- Suitable Cable Types: SWA, SWB, AWA and STA
- Ingress Protection: IP66
- Operating Temperature: -60°C to +100°C
- Protection Type: Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db
- Certifications: CESI 14 ATEX 032X and IECEx CES 14.0013X
- Maximum Cable Cross-Sectional Area: 804.4 mm²
- Cable Gland Torque: 75 Nm for SW2 and SW3
- Dimensions (H x L x W): 83.4mm x 83.4mm x 66mm
- Weight: 0.525 kg
Key Features
- Compound barrier seal with external compression seal
- Designed for armoured cable installations in hazardous areas
- Nickel-plated brass construction provides corrosion resistance
- Suitable for gas Zones 1 and 2 and dust Zones 21 and 22
- Suitable for control panels, junction boxes, light fittings, housings and power distribution
- Certified for flameproof Ex d and increased-safety Ex e applications
- Compatible with SWA, SWB, AWA and STA armoured cables
- RoHS-compliant product range
Professional Installation Requirements
- Installation must be performed by a suitably qualified hazardous-area electrician in accordance with the manufacturer’s instructions and AS/NZS 60079.14. Correct compound preparation, armour termination, sealing and torque settings are essential for maintaining the Ex certification and IP rating.
Applications
- Hazardous-area control panels and junction boxes
- Oil and gas processing equipment
- Chemical and petrochemical installations
- Mining and mineral-processing equipment
- Power distribution equipment in classified areas
- Industrial lighting and electrical housings
- Armoured cable entries in gas and dust hazardous zones
Standards & Compliance
- AS/NZS 60079.14 for the design, selection, erection and inspection of electrical installations in explosive atmospheres
- AS/NZS 60079.0, AS/NZS 60079.1, AS/NZS 60079.7 and AS/NZS 60079.31 are the relevant Australian/New Zealand adoptions of the IEC protection standards applicable to this product type
Environmental Benefits
- Nickel-plated brass provides extended service life and corrosion resistance, reducing replacement waste
- Brass components can be recovered and recycled at end of service life
- RoHS compliance limits the use of certain hazardous substances
- Durable construction supports long-term cable-system reliability in demanding environments
Warranty Information
Warranty is subject to the applicable ABB/Kopex terms and the conditions of sale supplied by the authorised distributor. Confirm the applicable Australian warranty period at purchase.
Available Now
Available through KOPEX/ABB and authorised Australian electrical and hazardous-area distributors.
