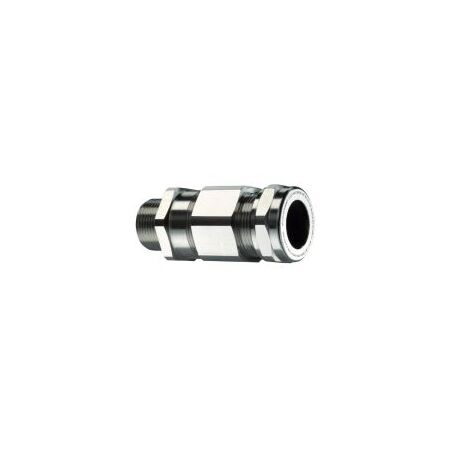

Ex de Armoured Barrier Gland M50 33-48mm Nickel Brass Kopex
Kopex Armoured Barrier Gland M50 features 33-48mm range, compound barrier seal, ATEX IECEx rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hazardous Area Armoured Barrier Gland, Ex d Ex e Cable Gland, Compound Barrier Cable Gland, Kopex-Ex C5 Gland
Technical Specifications
- Thread Size: M50 x 1.5
- Cable Diameter Range: 33–48 mm
- Cable Types: SWA, SWB, AWA and STA armoured cables
- Construction: Compound barrier inner seal with outer compression seal
- Material: Nickel-plated brass
- Seal Material: Chloroprene or silicone
- Protection Rating: IP66
- Hazardous Area Protection: Ex d flameproof and Ex e increased safety
- Application Zones: Gas Zones 1 and 2; Dust Zones 21 and 22
- Operating Temperature: -60°C to +100°C
- Approvals: ATEX CESI14ATEX032X and IECEx CES 14.0013X
- Product Series: Kopex-Ex C5
- Dimensions (H x L x W): 96.6mm x 77mm x 75mm
- Weight: 1.26 kg
Key Features
- Suitable for armoured wire, braid and tape cable types
- Compound barrier seal provides flameproof cable entry protection
- Outer compression seal improves cable retention and ingress protection
- Nickel-plated brass construction provides corrosion resistance
- Designed for Ex d, Ex e and Ex tb hazardous-area applications
- Suitable for control panels, junction boxes, light fittings, power distribution and machine-building equipment
- Compatible with cable diameters from 33 to 48 mm
Professional Installation Requirements
- Installation must be performed by a suitably qualified hazardous-area electrician in accordance with the manufacturer's instructions, the equipment certification and AS/NZS 60079.14. Barrier compound preparation and cable sealing must be completed correctly to maintain the Ex protection method.
Applications
- Oil and gas facilities
- Chemical and process plants
- Mining and mineral-processing equipment
- Hazardous-area control panels and junction boxes
- Industrial lighting fixtures and enclosures
- Power distribution equipment
- Machinery installed in explosive gas or dust atmospheres
Standards & Compliance
- AS/NZS 60079.0 for explosive-atmosphere equipment general requirements
- AS/NZS 60079.1 for flameproof Ex d protection
- AS/NZS 60079.7 for increased-safety Ex e protection
- AS/NZS 60079.31 for dust ignition protection by enclosure
- AS/NZS 60079.14 for electrical installations in hazardous areas
Environmental Benefits
- Nickel-plated brass construction offers corrosion resistance and extended service life, reducing replacement waste
- Brass is recyclable at end of service life
- RoHS compliance supports restriction of hazardous substances
- IP66 sealing helps protect connected equipment and reduce premature component replacement
Warranty Information
Warranty is subject to ABB/Kopex-Ex terms supplied through the authorised distributor. ABB published product conditions commonly specify 12 months from commissioning or 18 months from invoice for applicable product ranges; confirm the warranty period at purchase.
Available Now
Available through ABB/Kopex-Ex and authorised Australian electrical and industrial distributors.
