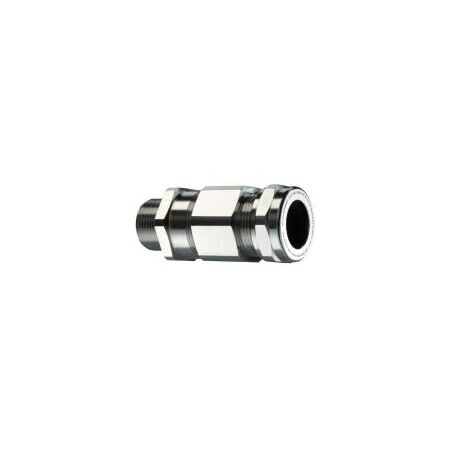

Ex de Armoured Barrier Gland M63 36-52mm Nickel Brass Kopex

BRAND: CABAC
SKU: EXN09MC5
$1,981.80 List price: $2,642.50
+ −
30 Days Return Electricians Unlock Trade Access
Kopex Armoured Barrier Gland M63 features 36-52mm range, compound barrier seal, ATEX IECEx rating and nickel plated brass. Ideal for hazardous areas.

Alternatively Known As: Kopex-Ex EXN09MC5, Ex d e barrier gland, hazardous-area armoured cable gland, compound barrier cable gland

Technical Specifications
  • Part Number: EXN09MC5
  • Thread Size: M63 x 1.5
  • Cable Diameter Range: 36–52 mm
  • Material: Nickel-plated brass
  • Gland Type: Ex d e armoured compound barrier flameproof cable gland
  • Sealing Method: Compound barrier seal with cable compression sealing
  • Hazardous Area Use: Zones 1, 2, 21 and 22
  • Explosion Protection Marking: Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db
  • Ingress Protection: IP66–IP68, subject to correct installation and enclosure interface
  • Operating Temperature: -40°C to +100°C
  • Certification: ATEX CESI 13 ATEX 041X; IECEx CES 13.0014X
  • Applicable Product Standards: EN/IEC 60079-0, 60079-1, 60079-7, 60079-31 and IEC 60529
  • Spanner Sizes: SW1 70 mm, SW2 70 mm, SW3 74 mm
  • Recommended Torque: SW2 100 Nm; SW3 75 Nm
  • Dimensions (H x L x W): 109.5mm x 77mm x 77mm
  • Weight: 1.2 kg
Key Features
  • Compound barrier seal for hazardous-area cable entry applications
  • Suitable for armoured cables with an outside diameter of 36–52 mm
  • Combines flameproof Ex d and increased-safety Ex e protection
  • Nickel-plated brass construction for corrosion resistance and mechanical durability
  • Suitable for gas and dust hazardous areas including Zones 1, 2, 21 and 22
  • Certified for use with compatible hazardous-area enclosures and equipment
  • Provides sealing and cable retention at the enclosure entry
Professional Installation Requirements
  • Installation must be carried out by suitably qualified and authorised hazardous-area electrical personnel. Follow the manufacturer's installation instructions, certification conditions and AS/NZS 60079.14 requirements. The barrier compound must be correctly mixed, injected and cured before the installation is placed into service.
Applications
  • Armoured cable entry into Ex d and Ex e junction boxes
  • Hazardous-area control panels and electrical enclosures
  • Oil and gas processing facilities
  • Chemical and petrochemical plants
  • Mining and mineral-processing installations
  • Industrial areas classified for combustible gas, vapour or dust atmospheres
Standards & Compliance
  • AS/NZS 60079.14: Electrical installations design, selection and erection in explosive atmospheres
  • AS/NZS IEC 60079 series, including the applicable parts covering general requirements, flameproof protection, increased safety and dust protection
  • Verify the current Australian certification and installation requirements for the complete equipment assembly before use
Environmental Benefits
  • Nickel-plated brass construction is durable and the brass body can be recycled at end of service life
  • Long service life in demanding industrial environments can reduce replacement frequency and material waste
  • No operating refrigerant, battery or electrical power is required
Warranty Information

Product-specific warranty duration is not published in the available Kopex-Ex documentation. Warranty is subject to ABB Australia/Kopex-Ex supply terms; confirm the applicable period and conditions with the authorised distributor before purchase.

Available Now

Available through Kopex-Ex/ABB and authorised Australian electrical and hazardous-area equipment distributors.
