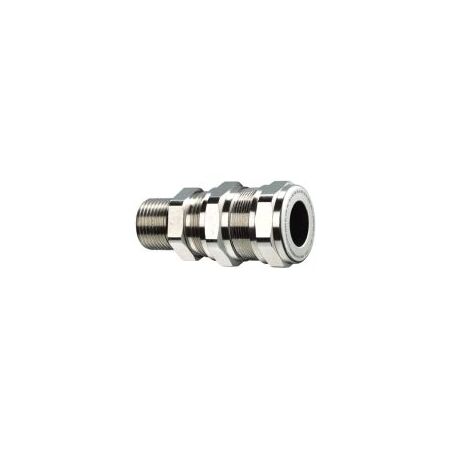

Ex de Armoured Cable Gland M20 6-12mm Nickel Plated Brass Kopex
Kopex Armoured Cable Gland M20 features 6-12mm range, double compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Kopex-Ex M20 double-compression cable gland, Ex d Ex e armoured cable gland, hazardous-area cable gland, SWA cable gland
Technical Specifications
- Model Series: C1
- Thread Size: M20 x 1.5
- Inner Cable Diameter: 6.0–12.0 mm
- Outer Cable Diameter: 8.5–16.0 mm
- Cable Types: SWA, SWB, AWA and STA armoured cables
- Material: Nickel-plated brass
- Seal Material: Chloroprene or silicone, subject to configuration
- Gland Type: Double compression for inner cable and outer sheath
- Protection Rating: IP66–IP68, 5 bar for 30 minutes
- Temperature Range: -40°C to +100°C
- Hazardous Area Rating: Ex d Ex e and Ex tb
- Hazardous Area Zones: Gas Zones 1 and 2; Dust Zones 21 and 22
- Thread Length: 16 mm
- Maximum Hexagonal Dimension: 31.5 mm
- Approvals: ATEX and IECEx product approvals; EN/IEC 60079 series and EN 62444
- Dimensions (H x L x W): 47mm x 16mm x 31.5mm
- Weight: 0.25 kg
Key Features
- Double compression design secures both the inner cable and outer sheath
- Suitable for steel wire armoured, steel wire braid, aluminium wire armoured and steel tape armoured cables
- Nickel-plated brass construction provides corrosion resistance for industrial environments
- Suitable for Ex d flameproof, Ex e increased-safety and Ex tb dust-protection applications
- Designed for use with hazardous-area control panels, junction boxes, light fittings, housings and machinery
- IP66–IP68 ingress protection when correctly selected and installed
- Wide 6–12 mm inner cable and 8.5–16 mm outer cable range
Professional Installation Requirements
- Installation must be performed by a suitably qualified hazardous-area electrician in accordance with the manufacturer's instructions, AS/NZS 60079.14 and applicable local electrical requirements. Correct cable type, armour clamping, sealing, torque and enclosure compatibility must be verified before use.
Applications
- Hazardous-area control panels and junction boxes
- Oil and gas processing equipment
- Mining and mineral-processing installations
- Industrial power distribution equipment
- Ex-rated light fittings and electrical housings
- Machinery and heat-tracing systems using armoured cables
Standards & Compliance
- AS/NZS 60079.0: Explosive atmospheres—Equipment—General requirements
- AS/NZS 60079.1: Equipment protection by flameproof enclosures Ex d
- AS/NZS 60079.7: Equipment protection by increased safety Ex e
- AS/NZS 60079.31: Equipment dust ignition protection by enclosure Ex t
- AS/NZS 60079.14: Explosive atmospheres—Electrical installations design, selection and erection
Environmental Benefits
- Nickel-plated brass is durable and recyclable at end of service life
- Corrosion-resistant construction can extend service life and reduce replacement waste
- RoHS-compliant product range supports restriction of hazardous substances
- IP66–IP68 sealing helps protect connected equipment and reduce premature component failure
Warranty Information
Covered by the applicable ABB/Kopex-Ex manufacturer and distributor warranty terms. Confirm the warranty period and claim conditions with the authorised Australian distributor; Australian Consumer Law rights also apply where applicable.
Available Now
Available through KOPEX/ABB and authorised Australian electrical and hazardous-area equipment distributors.
