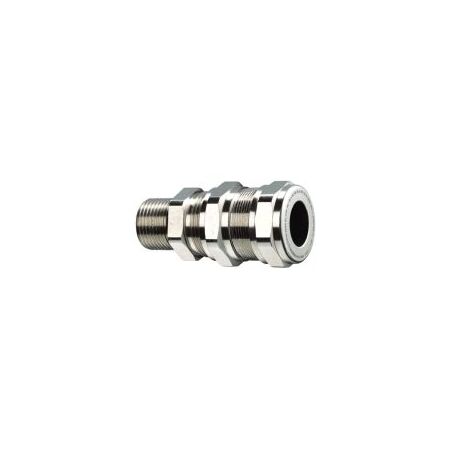

Ex de Armoured Cable Gland M25 12-20mm Nickel Plated Brass Kopex
Kopex Armoured Cable Gland M25 features 12-20mm range, double compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Kopex Ex de Armoured Cable Gland, M25 Hazardous Area Cable Gland, Nickel-Plated Brass Double Compression Gland
Technical Specifications
- Model: EXN05MLC1
- Thread Size: M25 x 1.5
- Cable Range, Inner: 12–20 mm
- Cable Range, Outer: 16–26 mm
- Gland Type: Double compression, armoured cable
- Material: Brass
- Finish: Nickel plated
- Protection Types: Ex d, Ex e and Ex t
- Ingress Protection: IP66; catalogue data also lists IP68 under specified installation conditions
- Operating Temperature: -40°C to +100°C
- Compatible Cable Types: SWA, SWB and AWA
- Thread Length: 18 mm
- Hexagon Dimension: 44 mm
- RoHS: RoHS3 compliant
- Hazardous Area Suitability: Zones 1, 2, 21 and 22
- Dimensions (H x L x W): 44mm x 60.5mm x 44mm
- Weight: 0.35 kg
Key Features
- Double compression design for armoured cable termination
- Suitable for inner cable diameters from 12 to 20 mm and outer diameters from 16 to 26 mm
- Nickel-plated brass construction for corrosion resistance and mechanical durability
- Ex d flameproof, Ex e increased safety and Ex t dust protection classifications
- M25 metric thread with 18 mm thread length
- Suitable for steel wire armoured, steel wire braid and aluminium wire armoured cables
- Designed for hazardous-area cable entries and enclosure connections
Professional Installation Requirements
- Installation must be performed by a suitably licensed and competent hazardous-area electrical installer in accordance with the gland manufacturer's instructions, cable construction requirements and AS/NZS 60079.14. Correct armour clamping, sealing and torque settings are essential to maintain the required Ex protection and ingress rating.
Applications
- Hazardous-area electrical enclosures
- Oil and gas processing facilities
- Petrochemical and chemical plants
- Mining and mineral-processing installations
- Industrial control and instrumentation systems
- Cable entries using SWA, SWB or AWA armoured cables
- Zone 1, Zone 2, Zone 21 and Zone 22 installations where the applicable certification and cable arrangement permit
Standards & Compliance
- AS/NZS 60079.0: General requirements for equipment intended for explosive atmospheres
- AS/NZS 60079.1: Applicable reference for Ex d flameproof protection
- AS/NZS 60079.7: Applicable reference for Ex e increased-safety protection
- AS/NZS 60079.31: Applicable reference for Ex t protection by enclosure for dust atmospheres
- AS/NZS 60079.14: Selection and installation requirements for electrical installations in explosive atmospheres
Environmental Benefits
- Nickel-plated brass provides a durable service life, reducing replacement frequency and material waste
- Brass is recyclable at end of service life
- RoHS3 compliance supports restriction of specified hazardous substances
- Suitable for durable industrial installations where long service life can reduce maintenance-related waste
Warranty Information
Covered by the applicable ABB Australia/Kopex commercial warranty for defects in materials and workmanship; ABB Australia standard sale conditions specify a 12-month defect period from delivery unless otherwise agreed. Australian Consumer Law rights may also apply.
Available Now
Available through KOPEX/ABB channels and authorised Australian electrical distributors, subject to distributor stock availability.
