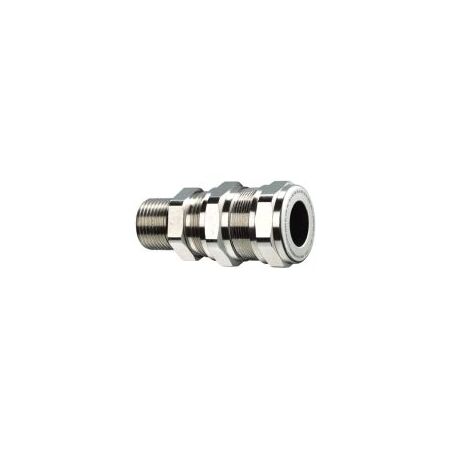

Ex de Armoured Cable Gland M63 40-52mm Nickel Plated Brass Kopex
Kopex Armoured Cable Gland M63 features 40-52mm range, double compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EXN09MMC1, M63 Ex d/e cable gland, double-compression armoured cable gland, hazardous-area cable gland
Technical Specifications
- Product Series: C1 Ex d/e double-compression cable gland
- Thread Size: M63 x 1.5
- Inner Cable Diameter Range: 40–52 mm
- Outer Cable Diameter Range: 47–60 mm
- Material: Nickel-plated brass
- Cable Compatibility: SWA, SWB and AWA armoured cables
- Protection Types: Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db
- Ingress Protection: IP66–68
- Operating Temperature: -40°C to +100°C
- Hazardous Area Zones: 1, 2, 21 and 22
- Approvals: CESI 13 ATEX 041X and IECEx CES 13.0014X
- Applicable Product Standards: EN/IEC 60079-0, 60079-1, 60079-7, 60079-31 and 60529
- Recommended Tightening Torque: 250 Nm for CH2; 100 Nm for CH3
- Dimensions (H x L x W): 107mm x 107mm x 94mm
- Weight: 1.828 kg
Key Features
- Double-compression construction for armoured cable termination
- Flameproof Ex d and increased-safety Ex e protection
- Ex tb protection for combustible dust environments
- Nickel-plated brass construction with corrosion resistance
- Suitable for SWA, SWB and AWA armoured cables
- Designed for hazardous areas including Zones 1, 2, 21 and 22
- High ingress protection rated IP66–68
- M63 metric thread with 40–52 mm inner cable sealing range
Professional Installation Requirements
- Installation must be performed by a suitably qualified hazardous-area electrician in accordance with the manufacturer's certificate, installation instructions, AS/NZS 60079.14 and applicable Australian electrical regulations. Confirm cable type, hazardous-area zone, thread engagement, earthing and gland selection before installation.
Applications
- Armoured power cable entry into hazardous-area enclosures
- Mining and mineral-processing installations
- Oil, gas and petrochemical facilities
- Chemical and process plants
- Industrial control panels, motors and junction boxes in explosive atmospheres
- Equipment installed in gas and combustible-dust hazardous areas
Standards & Compliance
- AS/NZS 60079.14: Installation requirements for electrical installations in explosive atmospheres
- AS/NZS 60079.0: General requirements for explosive-atmosphere electrical equipment
- AS/NZS 60079.1: Flameproof enclosure protection Ex d
- AS/NZS 60079.7: Increased-safety protection Ex e
- AS/NZS 60079.31: Protection by enclosure for combustible dust atmospheres
Environmental Benefits
- Nickel-plated brass provides corrosion resistance and can extend service life in demanding industrial environments
- Brass and nickel-plated brass components are recyclable at end of service life
- Durable construction can reduce replacement frequency and associated material waste
- RoHS compliance is identified in Kopex-Ex product documentation
Warranty Information
ABB Australia standard sale terms provide warranty coverage for defects for 12 calendar months from delivery, subject to the applicable terms and conditions, correct handling, installation and use.
Available Now
Available through Aspen Pumps and authorised Australian electrical and hazardous-area equipment distributors.
