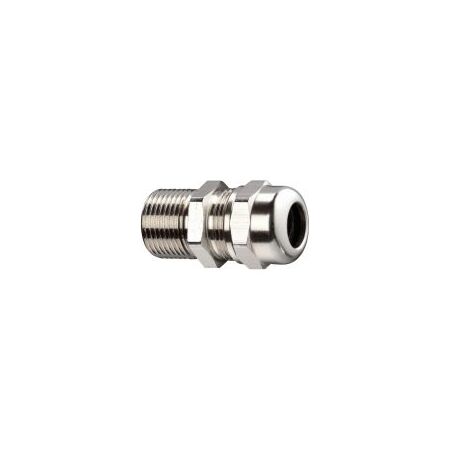

Ex de Unarmoured Cable Gland M32 14-24mm Nickel Brass Kopex
Kopex Unarmoured Cable Gland M32 features 14-24mm range, single compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Kopex EXN06MMC2, Ex de Unarmoured Cable Gland, Hazardous Area Cable Gland
Technical Specifications
- Part Number: EXN06MMC2 / ABB 7TCA297180R0049
- Thread Size: M32 x 1.5
- Cable Diameter Range: 14–24 mm
- Gland Type: Single compression for unarmoured cable
- Material: Nickel-plated brass
- Protection Types: Ex d, Ex e and Ex t / Ex tb IIIC Db
- Ingress Protection: IP66–IP68
- Sealing Ring Ranges: 14–17 mm, 17–20 mm and 20–24 mm
- Operating Temperature: -40°C to +80°C
- Recommended Tightening Torque: 28 Nm for full sealing assembly, 23 Nm for intermediate assembly and 20 Nm for single sealing ring
- Certifications: IMQ 14 ATEX 013X and IECEx IMQ 14.0005X
- Dimensions (H x L x W): 43mm x 43mm x 35mm
- Weight: 0.18 kg
Key Features
- Single compression design for unarmoured cables
- Suitable for hazardous-area cable entries and threaded enclosures
- Nickel-plated brass construction provides corrosion resistance for industrial installations
- Three removable sealing-ring combinations accommodate 14–24 mm cable diameters
- Certified for flameproof Ex d, increased-safety Ex e and dust-protection Ex t applications
- Suitable for gas and dust hazardous areas, subject to the certification and installation conditions
Professional Installation Requirements
- Installation should be carried out by a suitably licensed and competent hazardous-area electrical installer in accordance with the equipment certification, manufacturer instructions and AS/NZS 60079.14. Correct cable selection, sealing-ring combination, thread engagement, tightening torque and enclosure compatibility must be verified before commissioning.
Applications
- Hazardous-area electrical enclosures
- Oil and gas processing facilities
- Chemical and petrochemical plants
- Mining and mineral-processing equipment
- Industrial switchgear, motors and control panels
- Zones 1, 2, 21 and 22 installations where the certified gland configuration is suitable
Standards & Compliance
- AS/NZS 60079.0: Explosive atmospheres — General requirements
- AS/NZS 60079.1: Explosive atmospheres — Equipment protection by flameproof enclosures 'd'
- AS/NZS 60079.7: Explosive atmospheres — Equipment protection by increased safety 'e'
- AS/NZS 60079.31: Explosive atmospheres — Equipment dust ignition protection by enclosure 't'
- AS/NZS 60079.14: Explosive atmospheres — Electrical installations design, selection and erection
- AS/NZS 60529: Degrees of protection provided by enclosures, relevant to the IP rating
Environmental Benefits
- Nickel-plated brass provides durable corrosion resistance, which can extend service life and reduce replacement waste
- Brass is recyclable at end of service life
- Robust metal construction is suitable for long-life industrial installations
- The sealed cable-entry design helps protect electrical equipment from moisture and dust ingress, supporting equipment longevity
Warranty Information
ABB general equipment warranty terms state coverage for defects in material and workmanship for 12 months after installation or 18 months after shipment, whichever occurs first; confirm the applicable Australian distributor terms before purchase.
Available Now
Available through ABB/KOPEX-EX channels and authorised Australian electrical distributors; contact the distributor to confirm current stock and lead time.
