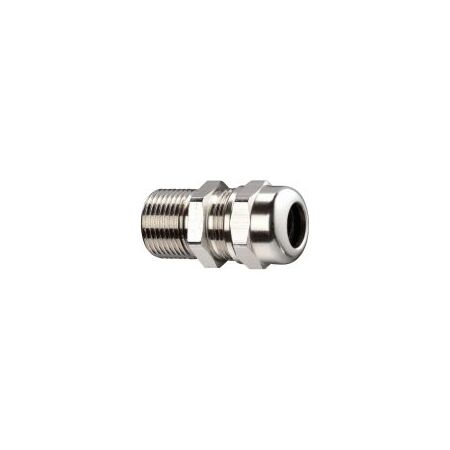

Ex de Unarmoured Cable Gland M32 22-26mm Nickel Brass Kopex
Kopex Unarmoured Cable Gland M32 features 22-26mm range, single compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M32 Hazardous Area Cable Gland, M32 Ex de Cable Gland, Nickel-Plated Brass Cable Gland, Single Compression Ex Cable Gland
Technical Specifications
- Part Number: EXN06MLC2
- Thread Size: M32 x 1.5
- Cable Diameter Range: 22–26 mm
- Cable Type: Unarmoured cable
- Compression Type: Single compression
- Material: Nickel-plated brass
- Protection Rating: IP66–IP68
- Operating Temperature: -40°C to +80°C
- Hazardous Area Rating: Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db
- Thread Length: 16 mm
- Body/Cap Across Flats: 45 mm
- Cable Gland Length: 53 mm
- Cable Gland Torque: 45 Nm, 40 Nm or 35 Nm depending on sealing configuration
- Approvals: EN/IEC 60079-0, 60079-1, 60079-7, 60079-11, 60079-31 and IEC 60529
- Certification: IMQ 14 ATEX 013X and IECEx IMQ 14.0005X
- Environmental Compliance: RoHS3 compliant
- Dimensions (H x L x W): 45mm x 53mm x 45mm
- Weight: 0.35 kg
Key Features
- Designed for unarmoured cables in hazardous areas
- Flameproof Ex d and increased-safety Ex e construction
- Ex tb protection for combustible dust environments
- Nickel-plated brass provides corrosion resistance for industrial installations
- Removable sealing rings provide a 22–28 mm overall cable range, including the specified 22–26 mm operating range
- IP66–IP68 ingress protection
- Suitable for hazardous gas Zones 1 and 2 and dust Zones 21 and 22 when installed within the certified system
- Supplied as a single-compression cable gland
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified hazardous-area technician in accordance with the manufacturer's certification, installation instructions and applicable AS/NZS 60079 requirements. Correct cable diameter, thread engagement, sealing-ring configuration and tightening torque must be verified before commissioning.
Applications
- Hazardous-area control panels and junction boxes
- Oil and gas processing equipment
- Petrochemical and chemical processing installations
- Mining and mineral-processing equipment
- Industrial motors, lighting enclosures and instrumentation
- Electrical equipment installed in classified gas or combustible-dust areas
Standards & Compliance
- Applicable Australian equivalents include AS/NZS IEC 60079.0 for general explosive-atmosphere equipment requirements
- AS/NZS IEC 60079.1 for Ex d flameproof protection
- AS/NZS IEC 60079.7 for Ex e increased-safety protection
- AS/NZS IEC 60079.31 for Ex t protection by enclosure for combustible dust atmospheres
- Installation and selection should also follow AS/NZS IEC 60079.14 where applicable
Environmental Benefits
- Nickel-plated brass and other metallic components can be recovered through established metal recycling streams
- RoHS3 compliance restricts specified hazardous substances in the product
- Durable corrosion-resistant construction can extend service life and reduce replacement waste
- IP66–IP68 sealing helps protect connected equipment and may reduce premature component failure
Warranty Information
ABB Installation Products warranty terms apply. ABB's published equipment warranty covers defects in materials and workmanship for 12 months after installation or 18 months from shipment, whichever occurs first, subject to the applicable terms and conditions.
Available Now
Available through KOPEX/ABB and authorised Australian electrical and hazardous-area equipment distributors.
