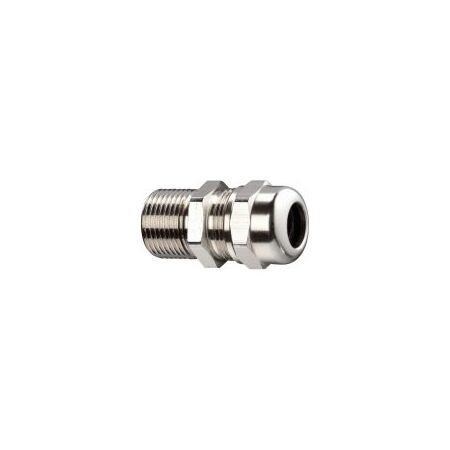

Ex de Unarmoured Cable Gland M40 22-32mm Nickel Brass Kopex
Kopex Unarmoured Cable Gland M40 features 22-32mm range, single compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Kopex-Ex EXN07MMC2, Ex d Cable Gland, Ex e Cable Gland, Hazardous Area Cable Gland, Non-Armoured Cable Gland
Technical Specifications
- Part Number: EXN07MMC2
- Gland Type: Single compression, non-armoured cable gland
- Thread Size: M40 x 1.5 metric
- Cable Diameter Range: 22–32 mm
- Material: Brass
- Finish: Nickel plated
- Protection Ratings: Ex d, Ex e and Ex t
- Ingress Protection: IP66–IP68, subject to installation and certification configuration
- Operating Temperature: -40°C to +80°C
- Thread Length: 18 mm
- Hexagon Width: 45 mm
- Applicable Product Standards: EN/IEC 60079-0, 60079-1, 60079-7 and 60079-31
- Environmental Compliance: RoHS3 compliant
- Dimensions (H x L x W): 50mm x 45mm x 45mm
- Weight: 0.25 kg
Key Features
- Suitable for unarmoured circular cables between 22 and 32 mm diameter
- M40 x 1.5 metric thread for hazardous-area electrical enclosures
- Nickel-plated brass body provides corrosion resistance and mechanical durability
- Single-compression sealing arrangement
- Suitable for Ex d flameproof, Ex e increased-safety and Ex t dust-protection applications
- Designed for hazardous areas including Zones 1, 2, 21 and 22, subject to the applicable certificate and installation requirements
- Cable sealing range can be accommodated using the supplied sealing configuration
- IP-rated sealing helps limit dust and water ingress when correctly installed
Professional Installation Requirements
- Installation must be performed by a suitably qualified electrician or hazardous-area technician in accordance with the manufacturer's instructions, the applicable certificate and AS/NZS 60079.14. Verify the cable construction, enclosure entry, hazardous-area zone, gas or dust group, temperature class and required sealing arrangement before installation.
Applications
- Hazardous-area switchboards and control panels
- Ex d and Ex e junction boxes and electrical enclosures
- Oil and gas processing facilities
- Chemical and petrochemical plants
- Mining and mineral-processing installations
- Industrial plants with flammable gas, vapour or combustible dust hazards
Standards & Compliance
- AS/NZS 60079.14: Explosive atmospheres – Electrical installations design, selection and erection
- AS/NZS IEC 60079.0: Explosive atmospheres – Equipment, general requirements
- AS/NZS IEC 60079.1: Explosive atmospheres – Equipment protection by flameproof enclosures 'd'
- AS/NZS IEC 60079.7: Explosive atmospheres – Equipment protection by increased safety 'e'
- AS/NZS IEC 60079.31: Explosive atmospheres – Equipment dust ignition protection by enclosure 't'
Environmental Benefits
- Nickel-plated brass is durable and recyclable at end of service life
- RoHS3 compliance supports restriction of specified hazardous substances
- Robust construction and ingress protection can extend service life and reduce replacement waste
- Secure cable sealing helps protect electrical equipment from moisture and dust ingress
Warranty Information
Covered by the manufacturer's applicable ABB/Kopex product warranty and Australian Consumer Law guarantees. Confirm the warranty period and claim conditions with the authorised distributor at purchase, as a product-specific retail warranty period was not published.
Available Now
Available through ABB/Kopex-Ex and authorised Australian electrical and hazardous-area equipment distributors.
