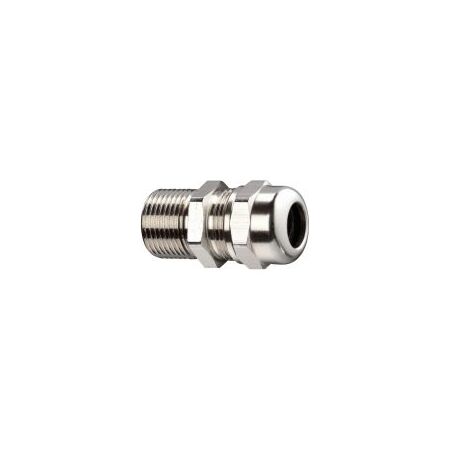

Ex de Unarmoured Cable Gland M40 26-34mm Nickel Brass Kopex

BRAND: CABAC
SKU: EXN07MLC2
$140.30 List price: $187.00
+ −
30 Days Return Electricians Unlock Trade Access
Kopex Unarmoured Cable Gland M40 features 26-34mm range, single compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.

Alternatively Known As: Kopex-Ex M40 hazardous-area cable gland, non-armoured cable gland, Ex d/e cable gland, explosion-protected cable gland

Technical Specifications
  • Manufacturer Part Number: EXN07MLC2
  • Thread Size: M40 x 1.5
  • Cable Diameter Range: 26.0–34.0 mm
  • Cable Type: Unarmoured, circular cable
  • Compression Type: Single compression
  • Material: Nickel-plated brass
  • Hazardous-Area Protection: Ex d flameproof, Ex e increased safety and Ex tb dust protection
  • Equipment Protection Level: Ex d e IIC Gb, Ex tb IIIC Db
  • Ingress Protection: IP66; IP68 versions and conditions should be confirmed against the supplied configuration
  • Operating Temperature: -40°C to +100°C
  • Sealing Ring Steps: 26–28 mm, 28–31 mm and 31–34 mm
  • Recommended Tightening Torque: 57 Nm for full sealing-ring combination, 55 Nm for two-section combination, 52 Nm for single-section combination
  • Dimensions (H x L x W): 55.5mm x 55.5mm x 50mm
  • Weight: 0.462664 kg
Key Features
  • Designed for unarmoured cable entries in hazardous areas
  • M40 x 1.5 metric male thread
  • Accommodates cable diameters from 26 to 34 mm
  • Nickel-plated brass construction for corrosion resistance and mechanical durability
  • Single-compression design for secure cable retention and sealing
  • Suitable for hazardous-area applications including Zones 1, 2, 21 and 22 when selected and installed in accordance with the certification
  • Sealing range is divided into three diameter steps for improved cable fit
Professional Installation Requirements
  • Installation must be performed by a suitably licensed electrician or hazardous-area specialist. Select the gland for the cable diameter, enclosure protection concept and hazardous-area classification, and install in accordance with the manufacturer's instructions and AS/NZS 60079.14. Do not use outside the certified application or temperature range.
Applications
  • Hazardous-area electrical enclosures
  • Oil and gas processing facilities
  • Chemical and petrochemical plants
  • Mining and mineral-processing installations
  • Industrial control panels and switchgear in classified explosive atmospheres
  • Unarmoured power, control and instrumentation cable entries
Standards & Compliance
  • Applicable Australian adoption: AS/NZS 60079.0 for equipment general requirements
  • Applicable Australian adoption: AS/NZS 60079.1 for Ex d flameproof protection
  • Applicable Australian adoption: AS/NZS 60079.7 for Ex e increased-safety protection
  • Applicable Australian adoption: AS/NZS 60079.31 for protection by enclosure for combustible dust atmospheres
  • Installation and selection should follow AS/NZS 60079.14
Environmental Benefits
  • Nickel-plated brass provides long service life and reduces replacement-related material waste
  • Brass is recyclable at end of service life
  • Durable construction supports continued use in demanding industrial environments
Warranty Information

Covered by the applicable KOPEX/ABB manufacturer warranty for product defects; warranty duration and conditions should be confirmed with the authorised Australian distributor.

Available Now

Available through KOPEX/ABB and authorised Australian electrical and hazardous-area equipment distributors.
