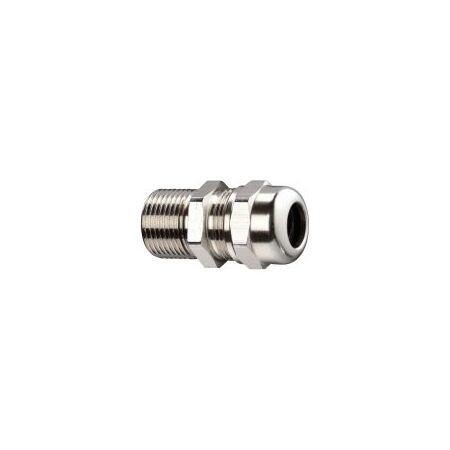

Ex de Unarmoured Cable Gland M50 26-35mm Nickel Brass Kopex
Kopex Unarmoured Cable Gland M50 features 26-35mm range, single compression, Ex d Ex e Ex t rating and nickel plated brass. Ideal for hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Kopex Ex de Cable Gland, Hazardous Area Cable Gland, Non-Armoured Compression Gland, Explosion-Protected Cable Gland
Technical Specifications
- Model: EXN08MSC2
- Thread Size: M50 x 1.5
- Cable Diameter Range: 26–35 mm
- Cable Type: Unarmoured cable
- Gland Type: Single compression
- Material: Nickel-plated brass
- Protection Types: Ex d flameproof and Ex e increased safety
- Dust Protection: Ex t suitable for hazardous dust environments
- Ingress Protection: IP66–IP68
- Overall Length: 61 mm
- Minimum Thread Length: 18 mm
- Spanner Size: 55 mm body / 50 mm cap
- Sealing Ring Steps: 26–28 mm, 28–31 mm and 31–35 mm
- Operating Temperature: Approximately -40 °C to +80 °C
- Thread Pitch: 1.5 mm
- RoHS: RoHS3 compliant
- Dimensions (H x L x W): 61mm x 55mm x 50mm
- Weight: 1 kg
Key Features
- Designed for unarmoured cables in hazardous areas
- Suitable for Ex d, Ex e and Ex t applications
- Single-compression sealing arrangement
- Nickel-plated brass construction for mechanical strength and corrosion resistance
- M50 metric entry thread with 26–35 mm cable range
- Provides IP66–IP68 ingress protection when correctly installed
- Suitable for cable entries into compatible hazardous-area enclosures
- Available with stepped sealing range to accommodate different cable diameters
Professional Installation Requirements
- Installation should be carried out by a suitably qualified hazardous-area electrician in accordance with the manufacturer's instructions, equipment certification and AS/NZS 60079.14. Confirm that the gland, enclosure, cable type, zone, gas or dust group and temperature class are compatible before installation.
Applications
- Hazardous-area electrical enclosures
- Oil and gas processing facilities
- Chemical and petrochemical plants
- Mining and mineral-processing equipment
- Industrial control panels and junction boxes
- Zone 1, Zone 2, Zone 21 and Zone 22 installations where the complete certified assembly is suitable
Standards & Compliance
- Applicable Australian framework includes AS/NZS 60079.1 for flameproof Ex d protection
- Applicable Australian framework includes AS/NZS 60079.7 for increased-safety Ex e protection
- Applicable Australian framework includes AS/NZS 60079.31 for protection by enclosure against dust ignition Ex t
- Installation should follow AS/NZS 60079.14; verify the product's current IECEx or ATEX certificate and marking for the specific installation
Environmental Benefits
- Nickel-plated brass is durable and recyclable at end of service life
- Robust metallic construction can extend service life and reduce replacement waste
- RoHS3 compliance restricts specified hazardous substances
- IP66–IP68 sealing helps protect connected equipment and reduce premature component failure
Warranty Information
ABB Australia standard sale terms provide a 12-month warranty from delivery for defects in materials and workmanship, subject to the applicable terms, correct handling and installation.
Available Now
Available through KOPEX/ABB and authorised Australian electrical and hazardous-area equipment distributors.
