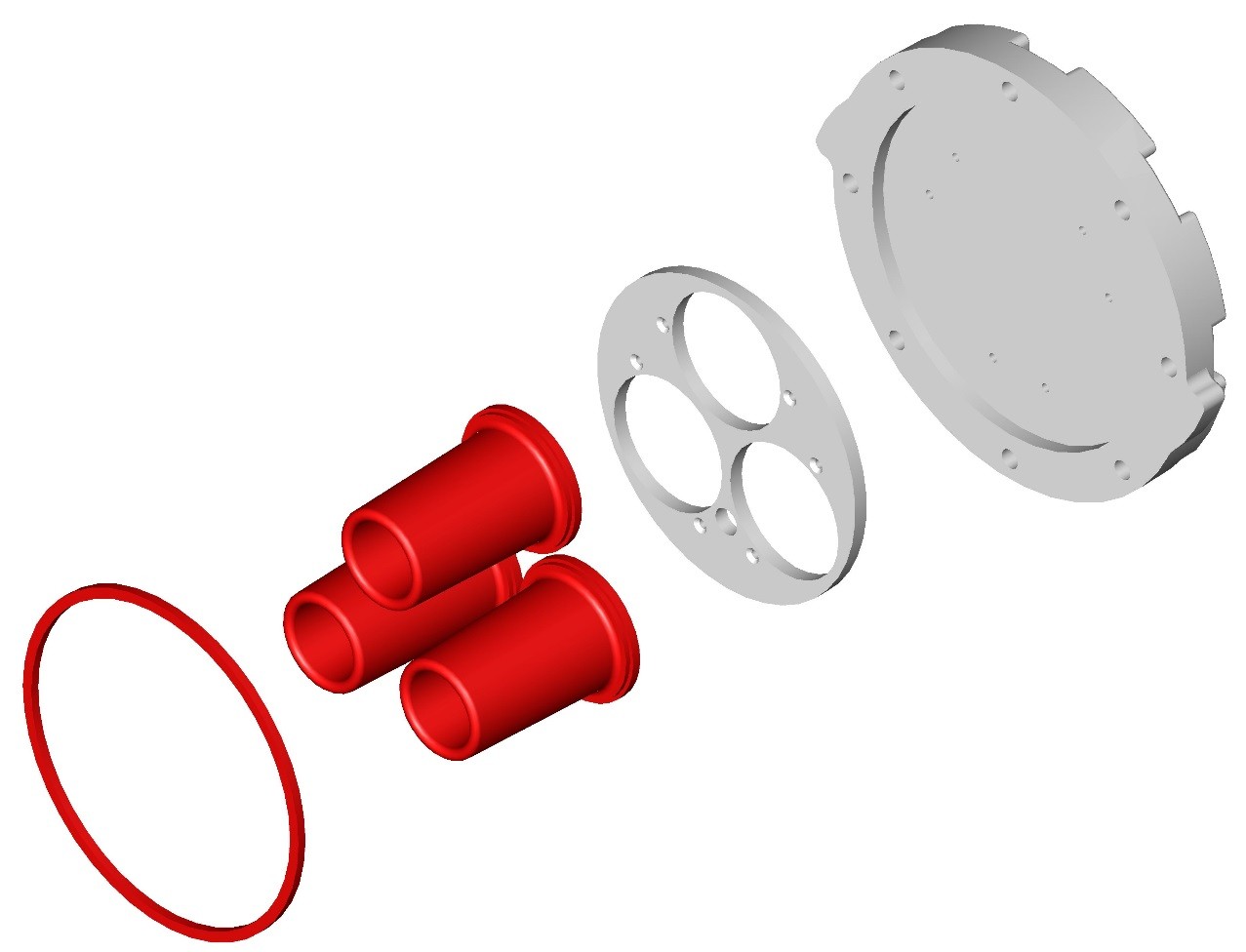

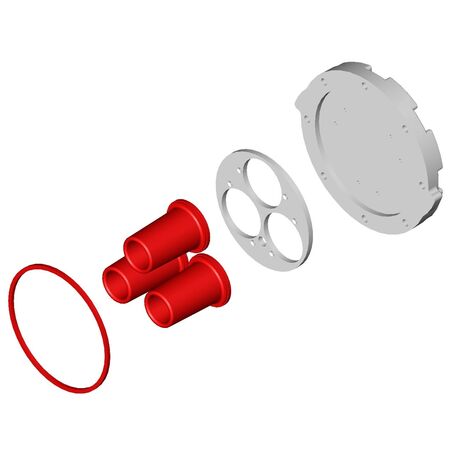

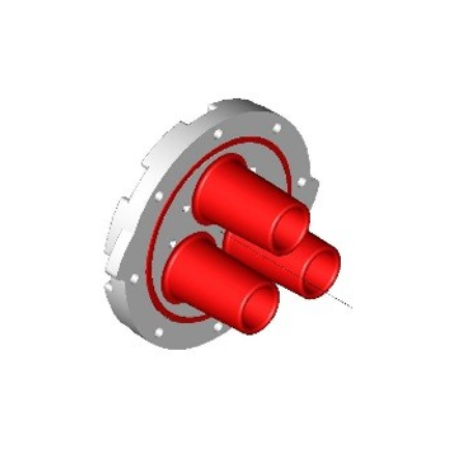

Ex Insulated End Cover SS | Stainless Steel 304 | 11000V & 800A Rated | by Ausproof
The Ex Insulated End Cover SS is designed for high voltage applications, constructed from durable Stainless Steel 304 for corrosion resistance. Rated for 11000 volts and 800 amps, it provides essential insulation and protection in flameproof electrical systems, making it ideal for industrial environments with hazardous atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Insulated End Cover SS | Stainless Steel 304 | 11000V & 800A Rated | by Ausproof
Brand: Ausproof
SKU: RS1001SS
Alternatively Known As: Flameproof Insulated End Cover, High Voltage End Cap, Ex118BSS End Cover
Technical Specifications
- Material: Stainless Steel 304
- Voltage Rating: 11000 V
- Current Rating: 800 A
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Constructed from durable Stainless Steel 304 for corrosion resistance
- Designed for high voltage applications up to 11000 volts
- Rated for current up to 800 amps
- Provides insulation and protection in flameproof electrical systems
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with high voltage flameproof equipment to ensure compliance and safety.
Applications
- High voltage electrical installations requiring flameproof components
- Industrial environments with hazardous atmospheres
- Electrical enclosures needing insulated end covers for safety
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Stainless steel construction ensures long product life reducing waste
- Supports safe electrical installations minimizing risk of hazardous incidents
Warranty Information
1 year warranty covering manufacturing defects and material faults.
Available Now
The Ausproof Ex Insulated End Cover SS is available for immediate purchase, ideal for high voltage flameproof electrical installations.
