Ex-rated 300A Receptacle | IP55 Ingress Protection | Quick Release & Stainless Steel | Ausproof
The Ex-rated 300A receptacle with IP55 ingress protection is ideal for mining and tunnelling applications. Built for hazardous environments, it features quick release, durable stainless steel construction, and easy flameproof repair, ensuring safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

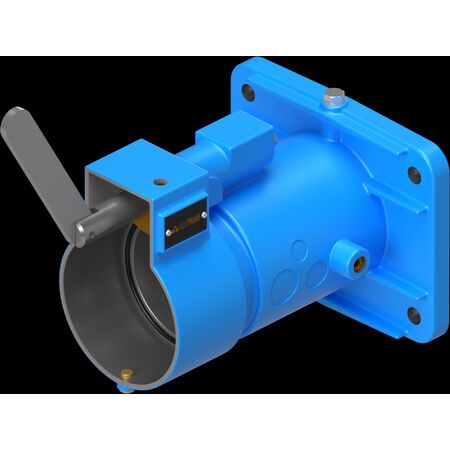

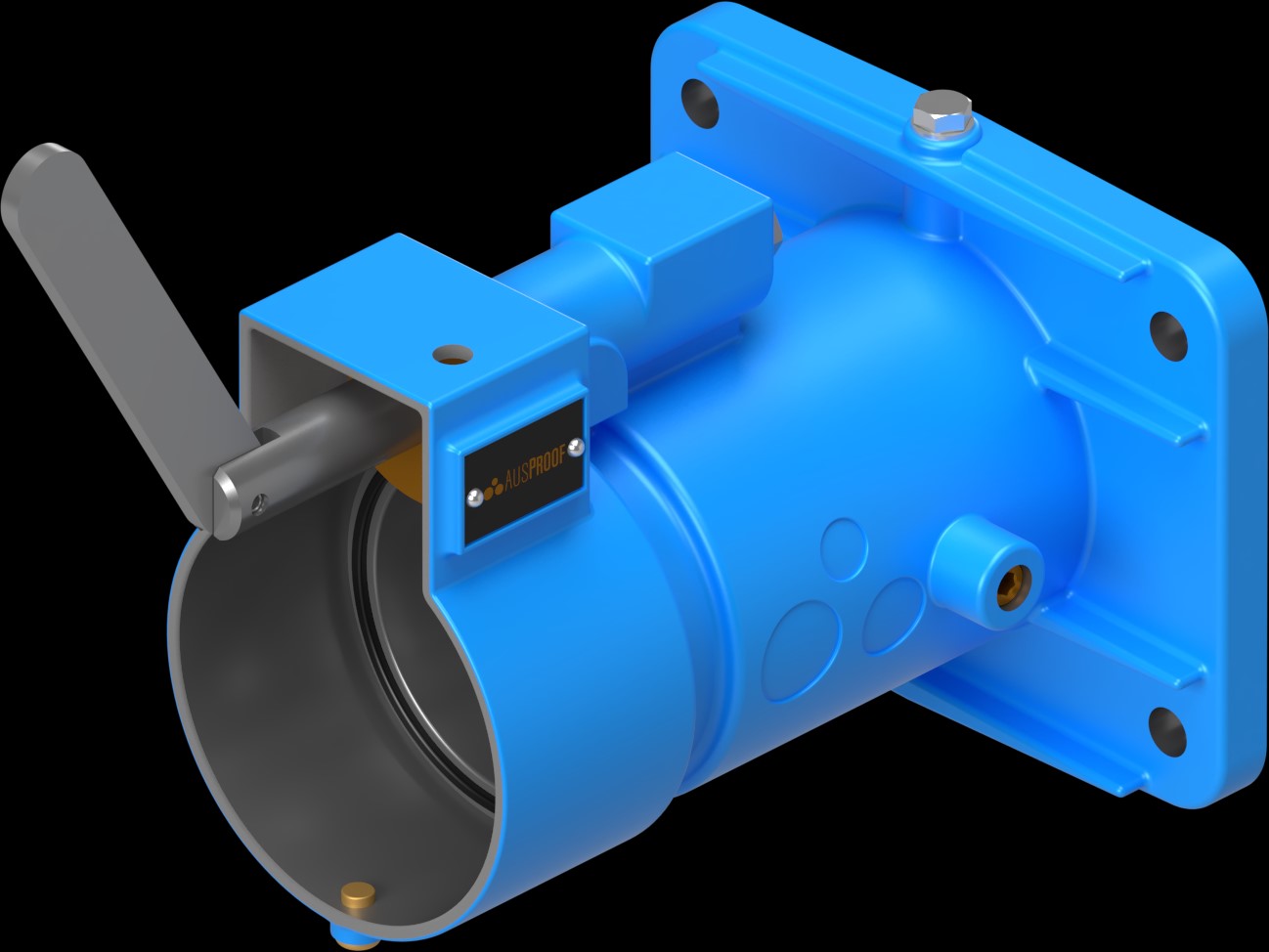

Product Name/Title: PL 1100V 300A 6P RECEP Blue Body Kit
Brand: Ausproof
SKU: RS1908
Alternatively Known As: PL Range Receptacle, Ex-rated 300A Receptacle, Flameproof Industrial Receptacle, Mining Grade Power Connector
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 300mm x 350mm x 250mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with Ex-rated equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof design enhances safety, reducing risk of environmental hazards.
- Easy on-site repair reduces waste and downtime.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 1100V 300A 6P Receptacle Blue Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
